H70 Large Closed-End Horizontal Baler
H70 LARGE CLOSED-END HORIZONTAL BALER
Recommended For
High Volume User
Recycling Centres
Waste Contractors
Distribution Centers
Supermarket
Benefits of the H70 Large Closed – End Horizontal Baler
Specifications
- Heavy duty V-shaped shear bar for cutting difficult materials
- Semi automatic guillotine style discharge allows for full ejection of bale
- 18.5-kilowatt motor for optimal bale compaction and power consumption
- Automatic cycle with anti-jam program
- 4-wire easy tie system ensures bales stay compacted
- “Bale full” indicator light helps ensure safe operation at multi-user sites
- Bale size: 750mm H x 1100mm W x 1400mm D (variable).
- Bale weight: 450–800 kg.
- Cycle time: 50–60 seconds.
- Compaction force: up to 70 tonnes.
- Dimensions: 2105mm H (excluding hopper) x 7925mm W x 2005mm D.
- Full bale discharge.
- Power: 3 phase 380/440 volt. 18 kW motor
- Automatic start up.
- Fill Opening: 1,960mm x 1,100mm.
- Oil cooler combined with oil heater.
- Dual pressure select.
- 12mm high carbon steel floor and top of press plate.
- Machine weight: approximately 9500 kg.
- Noise level: 80 dB.
- 300 Lt oil reservoir.
Specifications
- Bale size: 750mm H x 1100mm W x 1400mm D (variable).
- Bale weight: 450–800 kg.
- Cycle time: 50–60 seconds.
- Compaction force: up to 70 tonnes.
- Dimensions: 2105mm H (excluding hopper) x 7925mm W x 2005mm D.
- Full bale discharge.
- Power: 3 phase 380/440 volt. 18 kW motor
- Automatic start up.
- Fill Opening: 1,960mm x 1,100mm.
- Oil cooler combined with oil heater.
- Dual pressure select.
- 12mm high carbon steel floor and top of press plate.
- Machine weight: approximately 9500 kg.
- Noise level: 80 dB.
- 300 Lt oil reservoir.

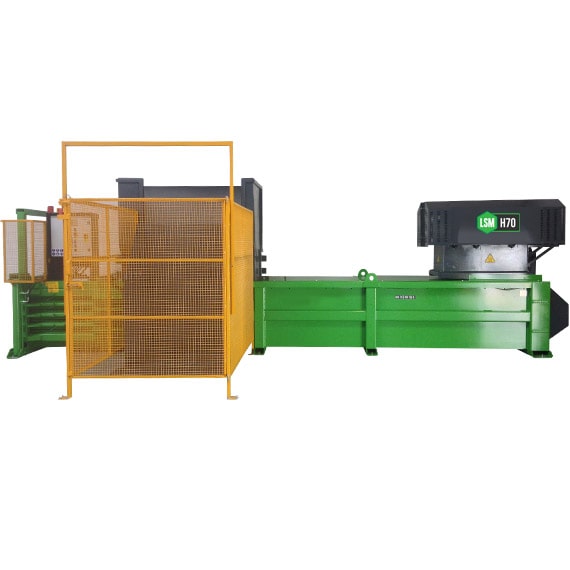

H70 Large Closed-End Horizontal Baler Details
The H70 horizontal cardboard baler, a closed-end baler, stands as a testament to our commitment to advanced waste management solutions. Boasting an impressive pressing force of up to 70 tonnes, this machine is designed specifically for businesses grappling with very high waste volumes. Whether it’s cardboard, plastics, textiles, or even cans, the H70 efficiently compresses these materials into dense, rectangular bales, optimizing space and facilitating easier transportation. Its operational efficiency is complemented by a suite of safety features, from safety interlocks to emergency stop mechanisms, ensuring safety standards that exceed Australian Safety Standards. Like other H-series models in our range, the H70 is built with durability and performance in mind, making it a top choice for businesses in need of reliable and high-powered waste management solutions.
Need something else? check out some other equipment
Check out our Collection Systems
Select another category
FAQs for H70 Horizontal Cardboard Baler
The H70 Horizontal Cardboard Baler is part of Smart Waste’s Large Range of waste management equipment. It is designed to compact cardboard into dense, uniform bales, helping businesses improve waste management, recycling efficiency, and storage capacity.
The H70 Horizontal Cardboard Baler is designed to process cardboard and other suitable recyclable materials. Compressing recyclable waste into compact bales helps simplify storage, handling, and waste collection.
The H70 Horizontal Cardboard Baler is suitable for businesses that generate high volumes of cardboard waste and require a reliable recycling solution to improve operational efficiency and reduce storage space.
The H70 Horizontal Cardboard Baler helps reduce cardboard waste volume, maximise storage space, improve waste handling, create organised recycling areas, and produce compact bales for easier transport and collection.
The right cardboard baler depends on the volume of cardboard waste your business generates, available installation space, and your recycling requirements. Smart Waste can assess your site and recommend the most suitable baler solution.
Before selecting a horizontal cardboard baler, consider your daily cardboard waste volume, available floor space, recycling objectives, and future operational needs. Smart Waste can help identify the most suitable waste management equipment for your business.
The H70 Horizontal Cardboard Baler compresses cardboard into dense bales, making recyclable materials easier to store, transport, and prepare for collection while helping businesses maintain cleaner and more organised recycling areas.
Yes. Smart Waste provides professional installation and commissioning services to ensure the H70 Horizontal Cardboard Baler is installed correctly and operates safely and efficiently.
Yes. Smart Waste offers preventative maintenance, equipment servicing, repairs, spare parts, and technical support to help maximise the performance and reliability of the H70 Horizontal Cardboard Baler.
Yes. Smart Waste offers both purchase and rental options across its waste management equipment range, allowing businesses to choose the solution that best suits their operational and financial requirements.
Smart Waste provides site assessments and expert guidance to help businesses compare cardboard balers and select equipment based on cardboard waste volumes, recycling requirements, available space, and operational needs.
Smart Waste provides complete waste management solutions, including equipment supply, installation, preventative maintenance, servicing, repairs, spare parts, technical support, and ongoing customer support to help businesses maximise the value and performance of their investment.
