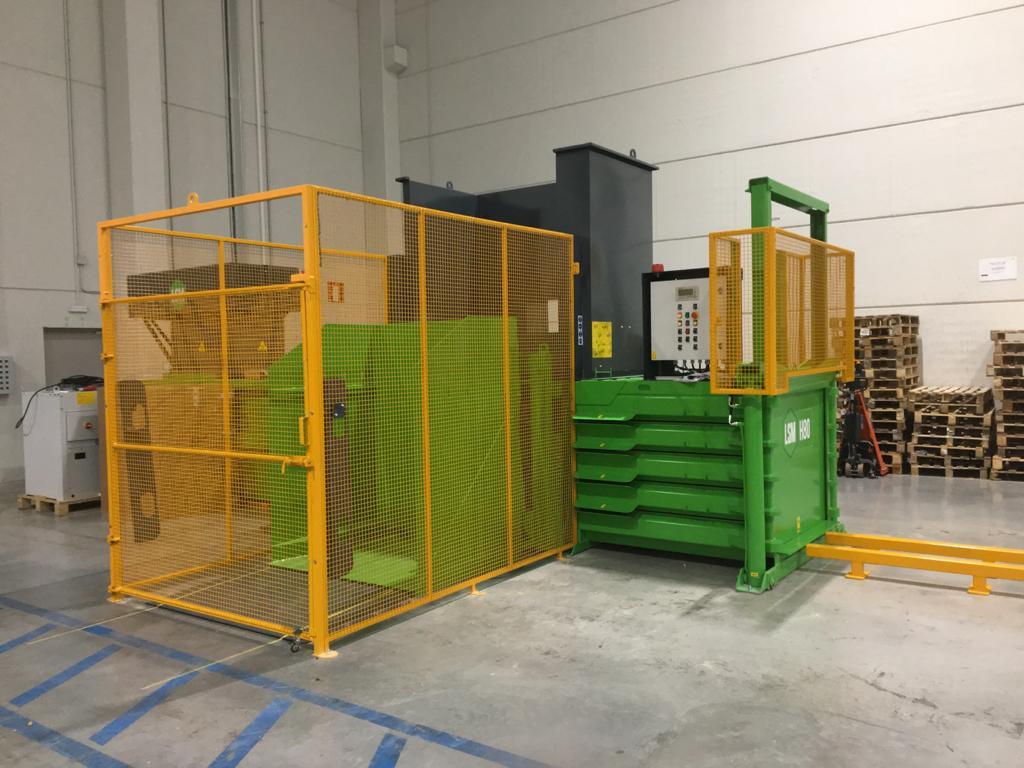

H80 Large Closed-End Horizontal Baler
The Smart Waste H80 Large Closed End Horizontal Baler creates bales of up to 1200kg!
Recommended For
High Volume User
Recycling Centres
Waste Contractors
Distribution Centers
Supermarket
Councils and Transfer Stations
Benefits of the H80 Large Closed – End Horizontal Baler
Specifications
- Heavy duty V-shaped shear bar for cutting difficult materials
- Semi automatic guillotine style discharge allows for full ejection of bale
- 18.5-kilowatt motor for optimal bale compaction and power consumption
- Automatic cycle with anti-jam program
- 4-wire easy tie system ensures bales stay compacted
- “Bale full” indicator light helps ensure safe operation at multi-user sites
- Bale size: 1050mm H x 1100mm W x 1400mm D (variable).
- Bale weight: 500-1,200 kg
- Cycle time: 50–60 seconds.
- Compaction force: up to 80 tonnes.
- Dimensions: 2775mm H (excluding hopper) x 7925mm W x 2005mm D.
- Full bale discharge.
- Power: 3 phase 380/440 V 18 kW motor.
- Automatic start up.
- Fill Opening: 1,960mm x 1,100mm.
- Oil cooler combined with oil heater.
- Dual pressure select.
- 12mm high carbon steel floor and top of press plate.
- 40 mm high carbon discharge door.
- Machine weight: approximately 10,500 kg.
- Noise level: 80 dB.
- 300 Lt oil reservoir.
Specifications
- Bale size: 1050mm H x 1100mm W x 1400mm D (variable).
- Bale weight: 500-1,200 kg
- Cycle time: 50–60 seconds.
- Compaction force: up to 80 tonnes.
- Dimensions: 2775mm H (excluding hopper) x 7925mm W x 2005mm D.
- Full bale discharge.
- Power: 3 phase 380/440 V 18 kW motor.
- Automatic start up.
- Fill Opening: 1,960mm x 1,100mm.
- Oil cooler combined with oil heater.
- Dual pressure select.
- 12mm high carbon steel floor and top of press plate.
- 40 mm high carbon discharge door.
- Machine weight: approximately 10,500 kg.
- Noise level: 80 dB.
- 300 Lt oil reservoir.
H80 Large Closed-End Horizontal Baler Details
Need something else? Check out some other equipment
Check out our Collection Systems
Select another category
FAQs for H80 Horizontal Hardboard Baler
The H80 Horizontal Hardboard Baler is part of Smart Waste’s Large Range of waste management equipment. It provides a horizontal baling solution for businesses handling hardboard and other suitable materials within their waste management operations.
The H80 Horizontal Hardboard Baler is designed to compact hardboard into manageable bales, helping businesses organise recyclable material and improve their waste handling and collection processes.
The H80 can be considered by businesses that generate hardboard waste and require a larger horizontal baling solution as part of their waste management and recycling operations.
The H80 helps businesses compact hardboard waste into manageable bales, supporting more organised storage, handling and waste collection while making better use of available waste management space.
The right baler depends on your material type, waste volumes, available space and operational requirements. Smart Waste’s Large Range provides different horizontal baler options that businesses can consider according to their waste management needs.
The H80 Horizontal Hardboard Baler is specifically identified as a hardboard baler within Smart Waste’s Large Range. The range also includes the H50 and H70 horizontal balers, allowing businesses to consider different equipment options.
Smart Waste lists the H80 Large Closed End Horizontal Baler with a compaction force of up to 80 tonnes, making this an important specification when comparing the Large Range.
Yes. The H80 forms part of Smart Waste’s waste management equipment range and provides a horizontal baling solution for businesses handling hardboard and suitable recyclable materials.
Smart Waste provides equipment installation and support services. The specific installation requirements for the H80 can be discussed with the Smart Waste team based on the business’s site and operational requirements.
Yes. Smart Waste provides preventative maintenance, equipment servicing and repairs to support the ongoing operation of its waste management equipment.
Smart Waste provides spare parts as part of its equipment support services, helping customers maintain and service their waste management equipment.
Smart Waste can help businesses assess their waste management requirements and consider suitable equipment from its range, including the H50, H70 and H80 horizontal balers.
