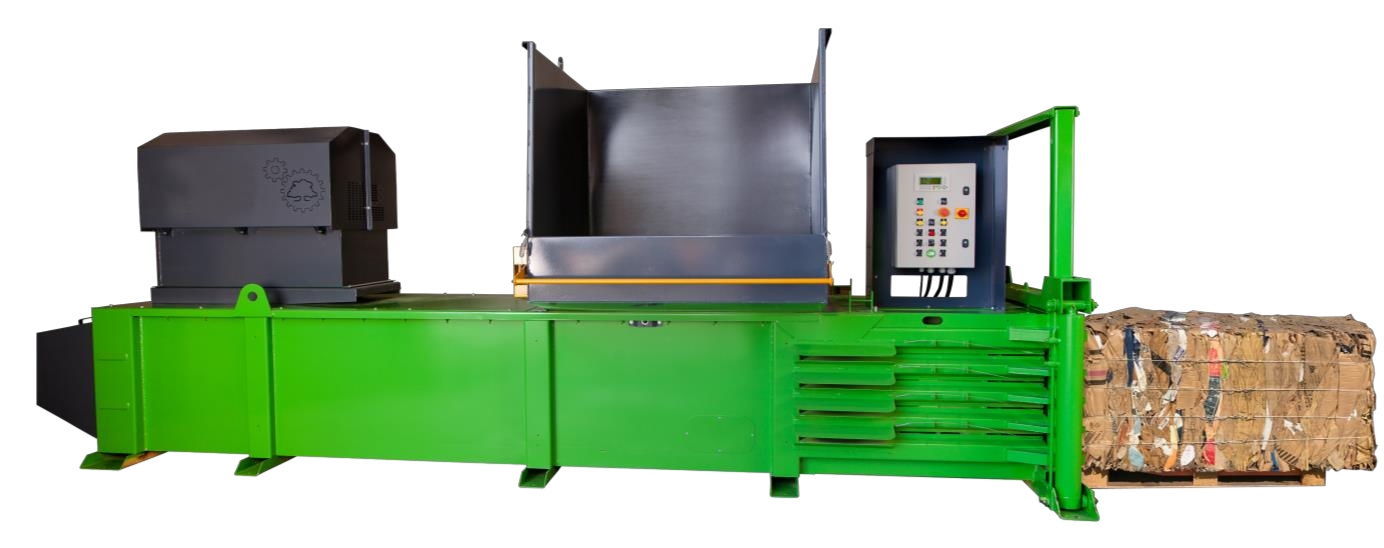

H50 Large Closed-end Horizontal Baler
Recommended For
High Volume User
Recycling Centres
Waste Contractors
Distribution Centers
Supermarket
Benefits of the H50 Smart Waste Press
Specifications
- Heavy duty V-shaped shear bar for cutting difficult materials
- Semi automatic guillotine style discharge allows for full ejection of bale
- 15-kilowatt motor for optimal bale compaction and power consumption
- Automatic cycle with anti-jam program
- 4-wire easy tie system ensures bales stay compacted
- “Bale full” indicator light helps ensure safe operation at multi-user sites
- Bale size: 750mm H x 1100mm W x 1000mm D (variable).
- Bale weight: 350–550 kg.
- Cycle time: 40–50 seconds.
- Compaction force: up to 50 tonnes.
- Dimensions: 2130mm H (excluding hopper) x 5990mm W x 1905mm D.
- Full bale discharge.
- Power: 3 phase 380/440 volt. 18 kW motor
- Fill opening: 1,310mm x 1,100mm.
- Dual pressure select.
- 12mm high carbon steel floor and top of press plate.
- 40 mm high carbon discharge door.
- Machine weight: approximately 7000 kg.
- Noise level: 80 dB.
- 300 Lt oil reservoir.
Specifications
- Bale size: 750mm H x 1100mm W x 1000mm D (variable).
- Bale weight: 350–550 kg.
- Cycle time: 40–50 seconds.
- Compaction force: up to 50 tonnes.
- Dimensions: 2130mm H (excluding hopper) x 5990mm W x 1905mm D.
- Full bale discharge.
- Power: 3 phase 380/440 volt. 18 kW motor
- Fill opening: 1,310mm x 1,100mm.
- Dual pressure select.
- 12mm high carbon steel floor and top of press plate.
- 40 mm high carbon discharge door.
- Machine weight: approximately 7000 kg.
- Noise level: 80 dB.
- 300 Lt oil reservoir.
H50 Large Closed-end Horizontal Baler Details
The H50 horizontal baler, a closed-end baler, stands as a testament to our commitment to advanced waste management solutions. Boasting an impressive pressing force of up to 50 tonnes, this machine is designed specifically for businesses grappling with very high waste volumes. Whether it’s cardboard, plastics, textiles, or even cans, the H50 efficiently compresses these materials into dense, rectangular bales, optimizing space and facilitating easier transportation. Its operational efficiency is complemented by a suite of safety features, from safety interlocks to emergency stop mechanisms, ensuring safety standards that exceed Australian Safety Standards. Like other H-series models in our range, the H50 is built with durability and performance in mind, making it a top choice for businesses in need of reliable and high-powered waste management solutions.
Need something else? Check out some other equipment
Select another category
FAQs for Model H50 Standard Closed End Horizontal Baler
The Model H50 Standard Closed End Horizontal Baler is part of Smart Waste’s Large Range of waste management equipment. It is designed to compact recyclable materials into dense bales, helping businesses improve waste management, recycling efficiency, and storage utilisation.
The Model H50 Standard Closed End Horizontal Baler is designed to process cardboard and other suitable recyclable materials. Compacting waste into uniform bales helps simplify storage, handling, and waste collection.
The Model H50 Standard Closed End Horizontal Baler is suitable for businesses generating larger volumes of recyclable materials and looking for a horizontal baler that supports efficient waste handling and recycling operations.
The Model H50 Standard Closed End Horizontal Baler helps reduce waste volume, improve recycling efficiency, maximise storage space, create organised waste handling areas, and produce compact bales for easier transport and collection.
The right baler depends on the type of recyclable materials you generate, daily waste volumes, available installation space, and operational requirements. Smart Waste can assess your waste management needs and recommend the most suitable baler solution.
Before selecting a horizontal baler, consider the materials you need to process, expected recycling volumes, available floor space, and long-term waste management goals. Smart Waste can help determine the most appropriate equipment for your business.
By compressing recyclable materials into dense bales, the Model H50 Standard Closed End Horizontal Baler helps businesses reduce storage requirements, improve waste collection, and maintain cleaner, more organised recycling areas.
Yes. Smart Waste provides professional installation and commissioning services to ensure the Model H50 Standard Closed End Horizontal Baler is installed correctly and ready for reliable operation.
Yes. Smart Waste offers preventative maintenance, equipment servicing, repairs, spare parts, and technical support to help maintain the long-term performance and reliability of the Model H50 Standard Closed End Horizontal Baler.
Smart Waste offers purchase and rental options across its waste management equipment range. The team can recommend the option that best suits your operational and business requirements.
Smart Waste provides site assessments and expert guidance to help businesses compare horizontal balers and select equipment based on recyclable materials, waste volumes, available space, and operational needs.
Smart Waste provides a complete waste management solution, including equipment supply, installation, preventative maintenance, servicing, repairs, spare parts, technical support, and ongoing customer support to help businesses maximise the value of their investment.
