MP Static Range
Recommended For businesses with
IGA and Supa IGA Stores
Supermarkets
Manufacturers
Hotels and Restaurants
Logistics Companies
Warehouses
Large Retail
Mine Sites
Benefits of the Short Static
- Container pre-full indication (75 %).
- Remote controls including 3 metres of cable.
- Hour metre in the operation panel (external).
- Pendulum steel scraper.
- Pendulum retaining pins.
- Tipping devices.
- Built-up hoppers.
quality features of the Smart Waste MP - What our customer value :
The coating :
- high-quality two-component coating.
- years of UV-resistance.
- extremely high scratch resistance.
- safe corrosion protection.
- easy cleaning.
- Color according to customer requirements.
The Processing
- reinforced press floor in longitudinal and transverse direction.
- Press floor made of highly wear-resistant fine grain structural steel.
- long service life due to robust construction.
- highest quality through state-of-the-art robot production v The equipmen.
- Optimum press force thanks to robust, linear press cylinders.
- high quality hydraulic and electronic components.
- constant oil level and temperature monitoring.
- External hydraulic unit.
- easy to maintain and reliable.
- adjustable plunger.
- Manual (optional automatic) coupling with ratchet operation.
- container full indication.
Specifications
- Container full light (100 %).
- Manual coupling device with ratchet.
- Highly wear and tear resistant floor plate.
- Sections completely welded.
- Adjustable ram.
- External hydraulic power pack.
- Hydraulic oil level and temperature switch.
- Large inspection hatches.
Stationary presses - types MP 800 to MP 1900
- With manual locking system for the uncoupled press containers Five opening sizes for different applications.
Stationary presses - type MP 800 TS to MP 1900 TS
- with fully automatic hydraulic locking device for the container door for clean container changes without the need for personnel Five opening sizes for different applications.
Stationary presses - type MP 2500
- System with an extra wide filling opening, for example for bulky cardboard boxes With manual locking system for the uncoupled press containers.

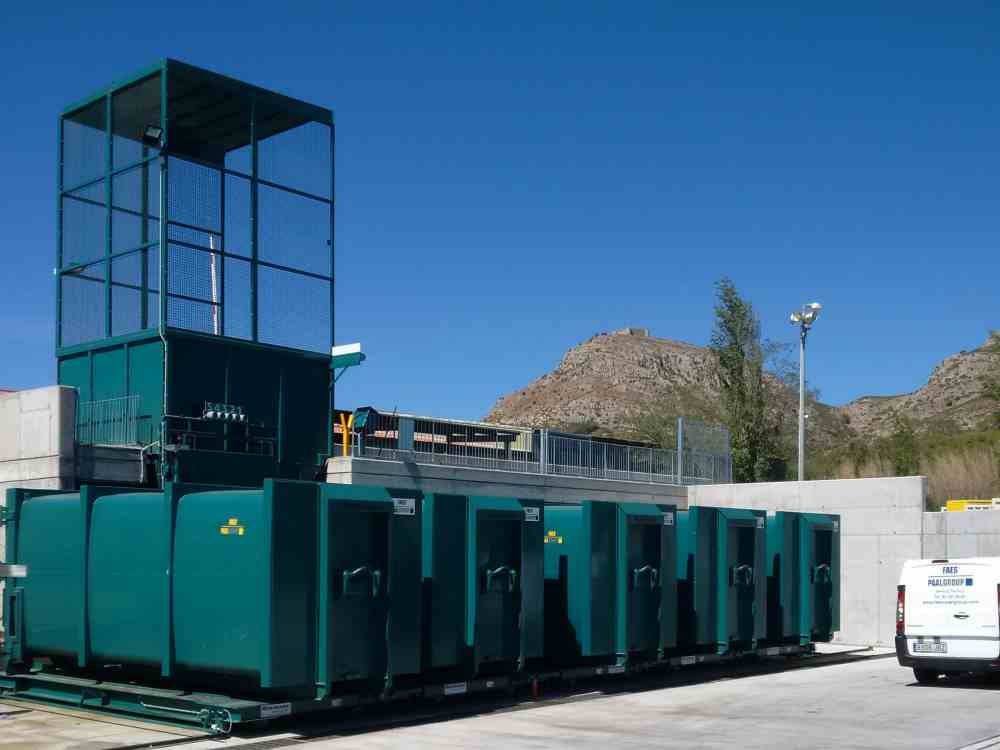

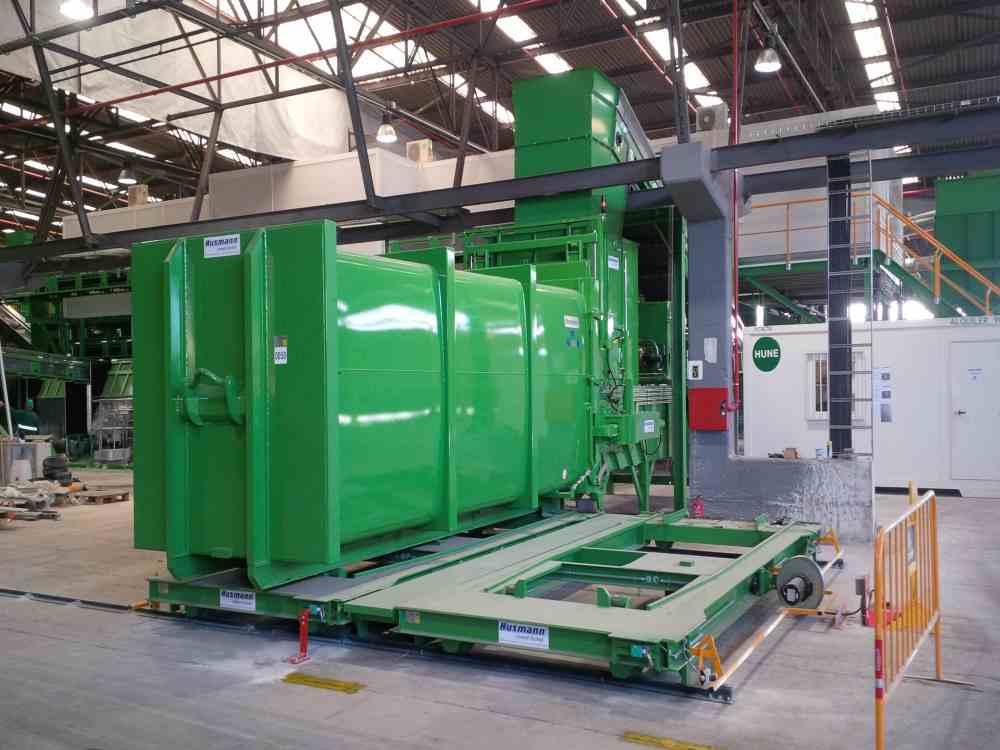

Stationary presses - type MP 2500 TS
- System with an extra wide filling opening, for example for bulky cardboard boxes with fully automatic hydraulic locking device for the container door for clean container changes without the need for personnel.
MP 1300 with hopper under separator
MP 1300 with integral tipping device
Static Compactor
| Technical Data | MP 800 | MP 1000 | MP 1300 | MP 1600 | MP 1900 | MP 2500 |
|---|---|---|---|---|---|---|
| Power (kW) | 7,5 | 7,5 | 7,5 | 11 | 11/15* | 11/15* |
| Total length without power unit (mm) | 2.830 | 3.480 | 4.080 | 4.715 | 5.730 | 5.730 |
| Machine height without hopper (mm) | 1.165 | 1.165 | 1.165 | 1.165 | 1.165 | 1.165 |
| Filling opening (mm) L x B | 895 x 1.410 | 1.195 x 1.410 | 1.495 x 1.410 | 1.795 x 1.410 | 2.195 x 1.410 | 2.195 x 1.900 |
| Ram stroke (mm) | 1.200 | 1.500 | 1.800 | 2.100 | 2.500 | 2.500 |
| Ram height (mm) | 600 | 600 | 600 | 600 | 600 | 600 |
| Volume per stroke (s) | 0,8 | 1,0 | 1,3 | 1,6 | 1,9 | 2,5 |
| Time per stroke (s)(rapid) | 41 | 28 | 32 | 28 | 33/24* | 33/24* |
| Volume per hour (m³), theoretical | 70 | 130 | 146 | 211 | 210/284* | 276/374* |
| Average cycle time (s) | 49 | 38 | 44 | 41 | 49/34 | 49/32 |
| Volume per hour (m³), practical | 60 | 96 | 107 | 141 | 141/214 | 185/282 |
| Compaction force (kN,to) | 300/30 | 300/30 | 300/30 | 300/30 | 300/30 | 300/30 |
Quality features of the Smart Waste MP – What our customer value: The coatin
» years of UV-resistance
» extremely high scratch resistance
» safe corrosion protection
» easy cleaning
» Color according to customer requirements
» The Processing
» reinforced press floor in longitudinal and transverse direction
» Press floor made of highly wear-resistant fine grain structural steel
» long service life due to robust construction
» high quality hydraulic and electronic components
» constant oil level and temperature monitoring
» External hydraulic unit
» easy to maintain and reliable
» adjustable plunger
» Manual (optional automatic) coupling with ratchet operation
» container full indication Â
» highest quality through state-of-the-art robot production v The equipment
Stationary presses – type MP 2500
- System with an extra wide filling opening, for example for bulky cardboard boxes
- With manual locking system for the uncoupled press containers
Stationary presses – type MP 2500 TS
- System with an extra wide filling opening, for example for bulky cardboard boxes with fully automatic hydraulic locking device for the container door for clean container
- changes without the need for personnel
Stationary presses – types MP 800 to MP 1900
- With manual locking system for the uncoupled press containers Five opening sizes for different applications
Stationary presses – type MP 2500 TS
- with fully automatic hydraulic locking device for the container door for clean container changes without the need for personnel Five opening sizes for different applications
Static Compactors Detail's
Fully developed, tried an trusted technology, long service life and sturdy, low maintenance construction are the outstanding features of Smart Waste compactors.
Due to their high compaction force, the volume of the materials to be compacted will be
reduced considerably.
The compactors can be combined with containers suitable for all common lifting devices.
The compactor and container can be connected with each other by a coupling device
which is simple to handle.
The compactors are delivered with the appropriate parts or machines (e.g. shifting
devices, tipping devices, suction devices, weighing devices etc.), they can be adjusted to every kind of application.
Need a different baler size? See our Larger and Smaller model
Check out our Collection Systems
Select another category
FAQ for MP Static Compactor Range: Commercial FAQs & High-Throughput Specifications
The MP Static Range consists of heavy-duty, multi-purpose industrial stationary compactors engineered for high-volume commercial and industrial (C&I) waste applications. Anchored permanently to a structural concrete foundation on site, these systems couple with high-capacity detachable roll-on/roll-off (RoRo) containers. The MP series is built with enlarged volumetric charge boxes, reinforced wear-resistant floors, and linear hydraulic cylinders designed to process continuous packaging streams, bulky cardboard, and dry municipal refuse without jamming or structural fatigue.
The “MP” (Multi-Purpose) designation highlights versatile material handling and reinforced chassis engineering:
- Extra-Large Feed Apertures: Generous charge box openings (typically 1.4 m to over 2.0 m in length) allow uncrushed cartons, bulky corrugate, and dry production waste to be fed directly without operator pre-shredding.
- Aggressive Material Retention: Multi-tiered hardened steel claws line the chamber mouth to lock elastic materials like stretch wrap and springy cardboard inside the container, preventing decompression back into the charge box.
- Fine-Grained Wear Steel Construction: The press floor and ram face are fabricated from wear-resistant fine-grain structural steel (such as Hardox or Bisalloy equivalents), protecting against abrasive wear and impacts from dense packaging.
Engineering Feature | MP Static Range (Multi-Purpose) | Short Static Range |
|---|---|---|
Chassis Configuration | Full-length linear hydraulic cylinder layout | Cross-cylinder (scissor) or telescopic layout |
Footprint Requirement | Standard to extended run length required | Ultra-compact (30% to 50% shorter footprint) |
Charge Chamber Size | Extra-large volumetric intake (1.5–2.5 m3+) | Compact to mid-size intake chamber |
Target Application | High-throughput logistics hubs, distribution centers, supermarkets | Space-restricted basement docks, urban commercial towers |
Throughput Capacity | Continuous multi-shift, high-tonnage loading | Moderate to high batch loading |
The MP Static Range provides industrial-scale pressing force designed for continuous commercial duty:
Parameter | Standard Engineering Specification | Operational Advantage |
|---|---|---|
Compaction Force | 350 kN to 500 kN (~35 to 50 tonnes) | Heavy crushing force for dense cardboard and rigid plastics |
Charge Box Volume | 1.4 m3 to 2.5 m3 per cycle | Rapid ingestion of oversized boxes without operator pre-cutting |
Cycle Duration | 35 to 55 seconds | Fast cycle times to prevent dock and chute backups |
Hydraulic Drive | 7.5 kW, 11 kW, or 15 kW high-efficiency motors | Continuous duty cycle performance for multi-shift facilities |
Working Pressure | 180 to 220 bar | Consistent hydraulic power across high-density loads |
Power Supply | 400 V, 50 Hz, 3-Phase, 32 A or 63 A | Industrial electrical standard with low-noise motor dampeners |
Operating under 35 to 50 tonnes of hydraulic pressure into structural RoRo receiver containers:
- Compaction Ratio: Delivers 4:1 to 7:1 on corrugated paperboard and packaging, and up to 10:1 on soft packaging films and stretch wrap.
- Haulage Reduction: Consolidates up to 8–10 loose skip loads into a single compacted container load, lowering truck movements by 75% to 85%.
- Zero Disruption with Dual Containers: High-volume facilities can stage an empty receiver container on site. When the full bin is detached for transport, the empty one is coupled immediately, eliminating compactor downtime.
The MP Static Range handles a wide spectrum of non-liquid commercial and industrial materials:
- Heavy Packaging Materials: Corrugated cardboard (OCC), packaging paper, and bulk pallet cartons.
- Plastic Waste: Pallet stretch film, shrink wrap, soft plastics, and strapping bands.
- Light Timber & Dunnage: Softwood slats, packaging crates, and broken shipping pallets.
- General Dry Municipal & Industrial Waste: Mixed non-hazardous commercial refuse, factory floor packaging, and office waste.
To support high-throughput operations, the MP Static Range supports diverse loading configurations:
- Conveyor Feeding Systems: Continuous in-feed belts from sorting stations, packaging lines, or mezzanine floors.
- Automated Bin Tippers: Integrated hydraulic lifters designed for 120 L, 240 L, 660 L, and 1,100 L wheelie bins with interlocked safety cages.
- Wall-Mounted Dock Chutes: Enclosed through-the-wall chutes allowing warehouse personnel to discard waste from inside the building without entering the truck dock.
- Tipper Hoppers with Auto-Lids: Pneumatic or hydraulic lids that open during feeding and close to control dust and wind-blown debris.
The MP Static Range is engineered to comply with Australian Machine Safety Standard AS/NZS 4024:
- Dual-Channel Safety Interlocks: Prevents machine cycling if hopper doors, maintenance panels, or bin lifter safety gates are open.
- Container Coupling Proximity Sensors: Ensures the hydraulic ram cannot cycle unless the detachable container is clamped and aligned to the press mouth.
- Emergency Stop Stations: Prominent mushroom E-stops located at the operator station, loading dock face, and optional remote-control panels.
- Optical Safety Light Curtains: Infrared barriers that instantly halt hydraulic motion if an operator crosses the hopper loading threshold.
Because of the high horizontal thrust exerted during compaction:
- Structural Concrete Foundation: A reinforced concrete slab (minimum 150 mm–200 mm depth, rated 32 MPa) capable of resisting anchor pull-out stresses.
- Steel Docking Guide Rails: Heavy ground-mounted channel rails anchored to the slab to ensure transport trucks guide RoRo containers into alignment with the press head.
- Electrical Infrastructure: A dedicated 400 V, 3-phase, 50 Hz power drop terminating in a weatherproof 32 A or 63 A lockable isolator switch adjacent to the power unit.
Preventative maintenance maintains high performance and reduces operational risk:
- Wear Strip & Guide Shoe Checks: Inspecting bottom and lateral synthetic or brass wear guides to prevent metal-on-metal friction inside the press channel.
- Hydraulic Fluid & Filter Care: Monitoring oil level and temperature, testing operating pressures, and replacing hydraulic return filters annually.
- Fastener & Anchor Torque Verification: Periodically re-torquing structural anchor bolts and container clamp turnbuckles subjected to heavy cyclic vibration. Smart Waste Australia provides comprehensive scheduled service contracts, preventative inspections, and emergency repairs across Australia.
