Portable Compactor - Hook lift - for Wet Waste

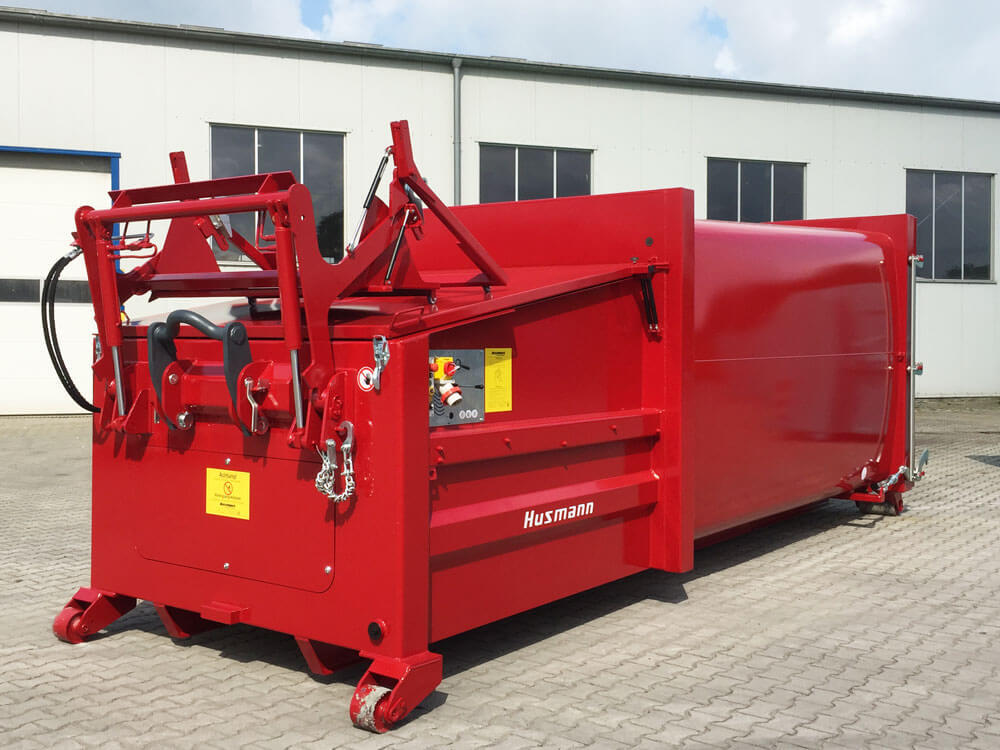

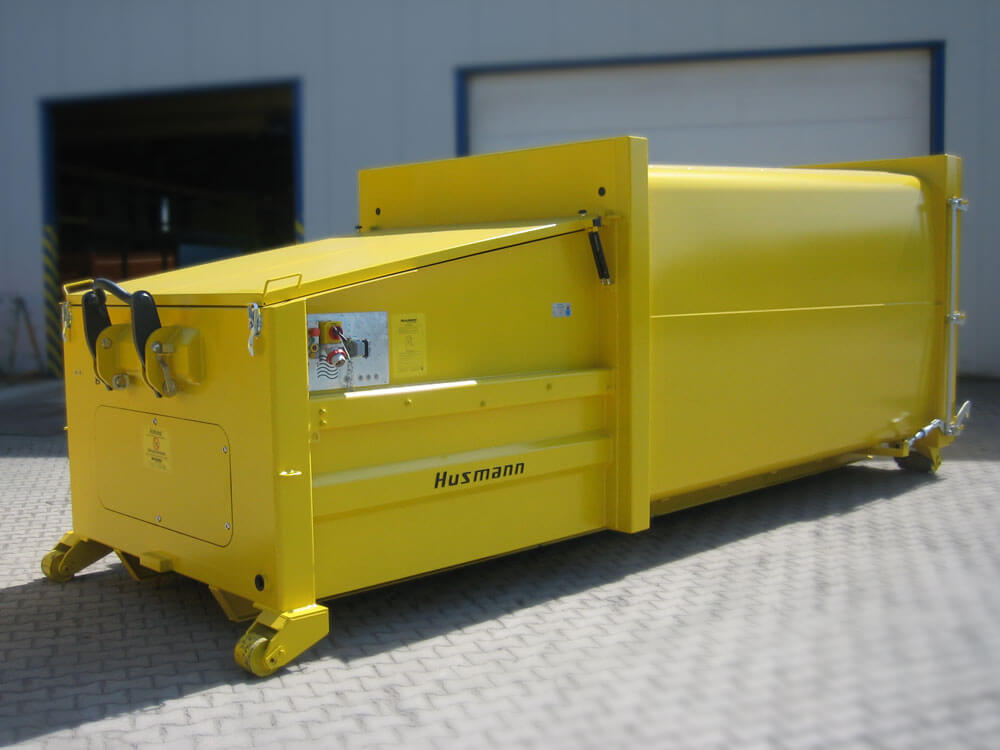

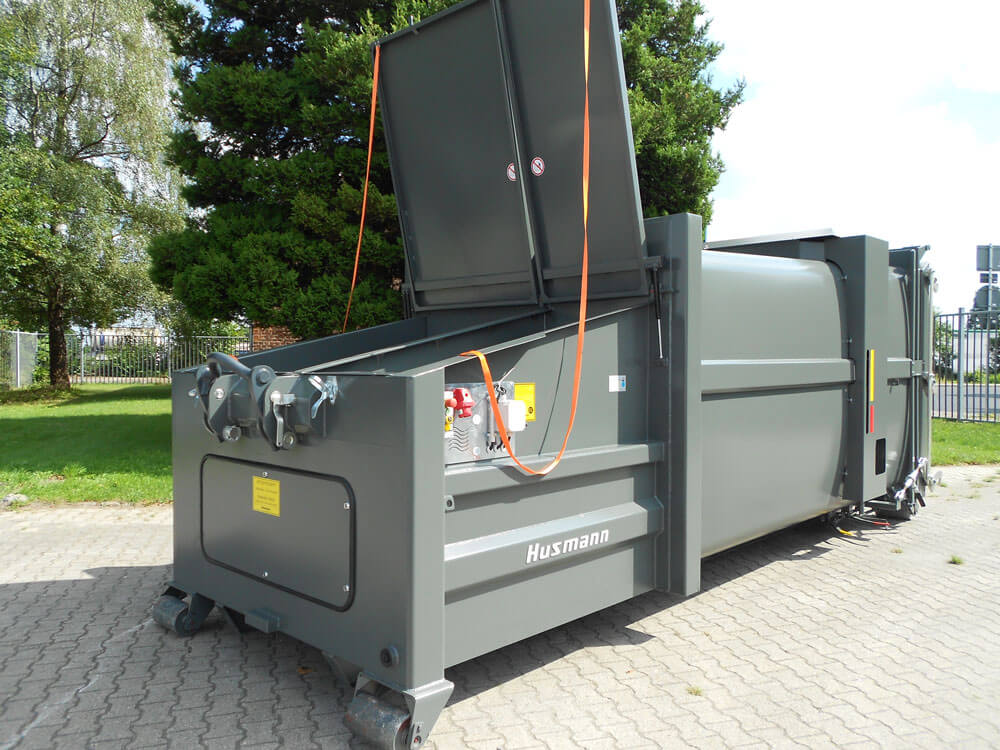

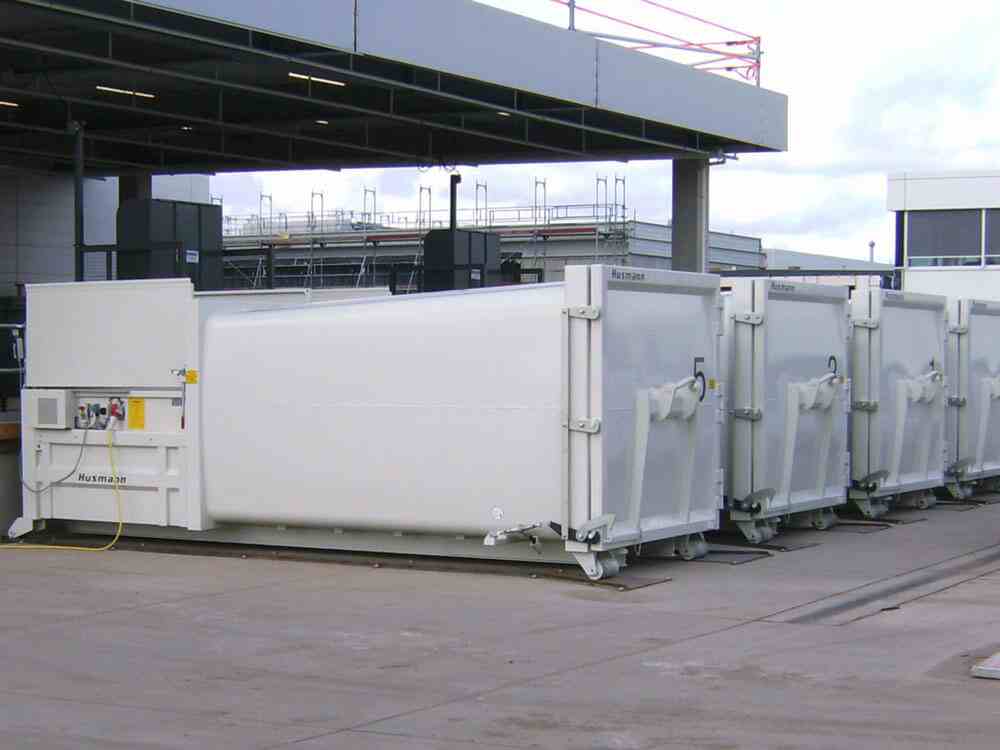

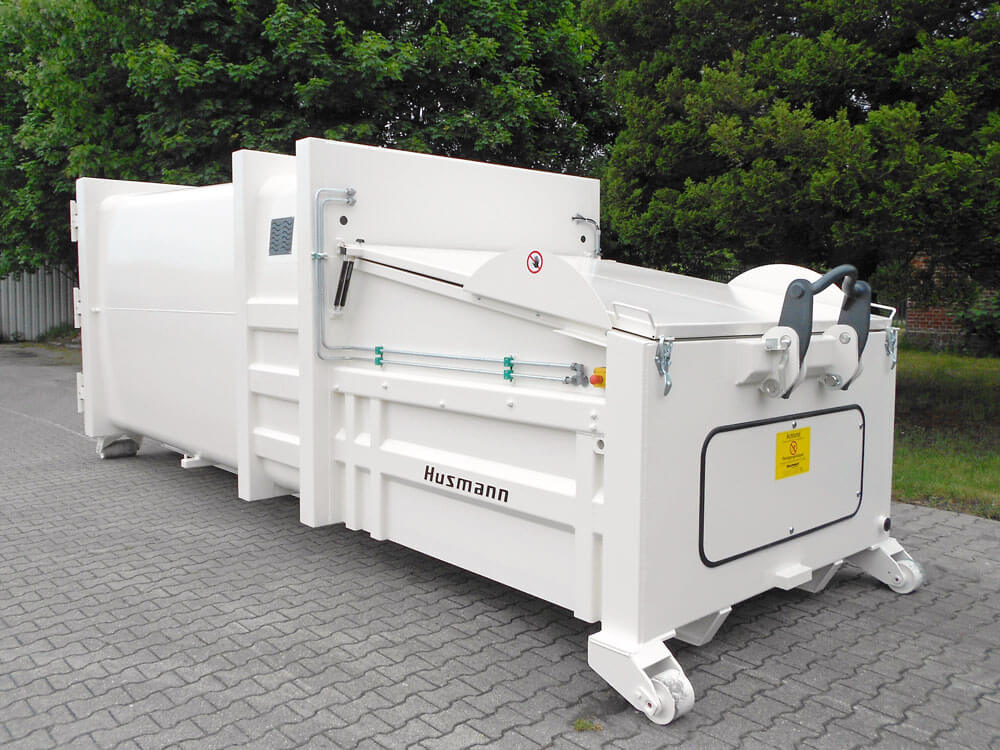

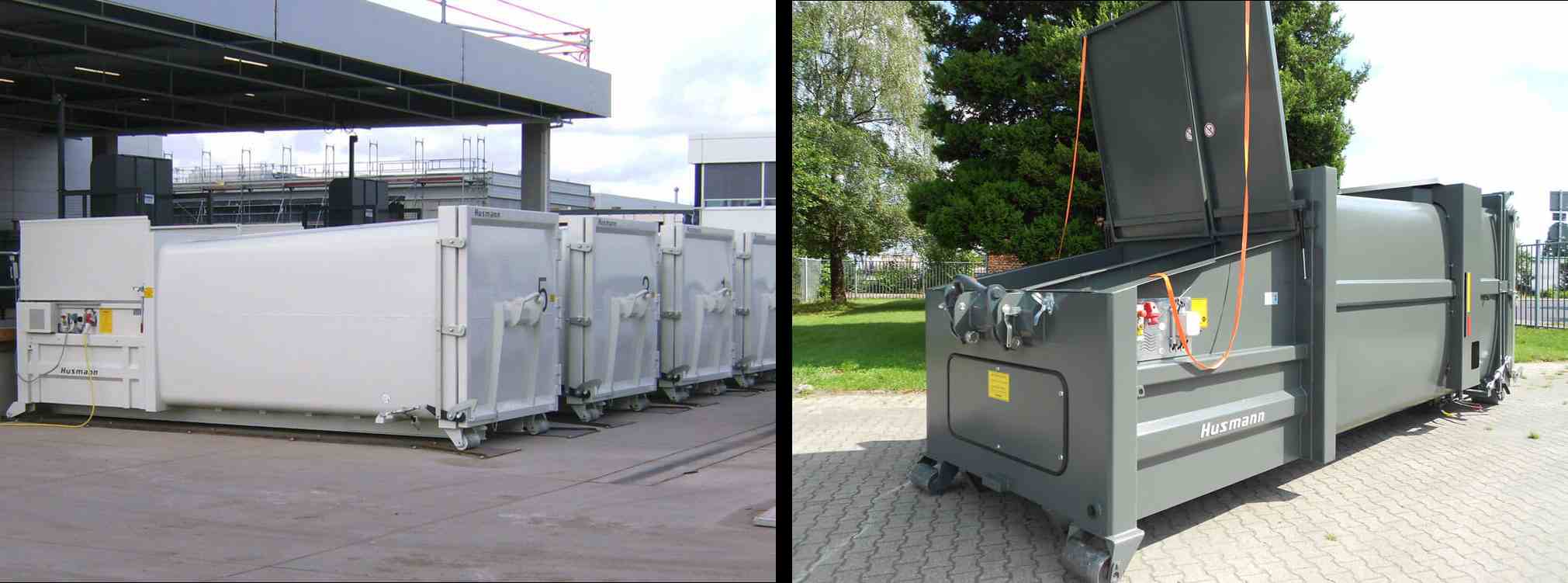

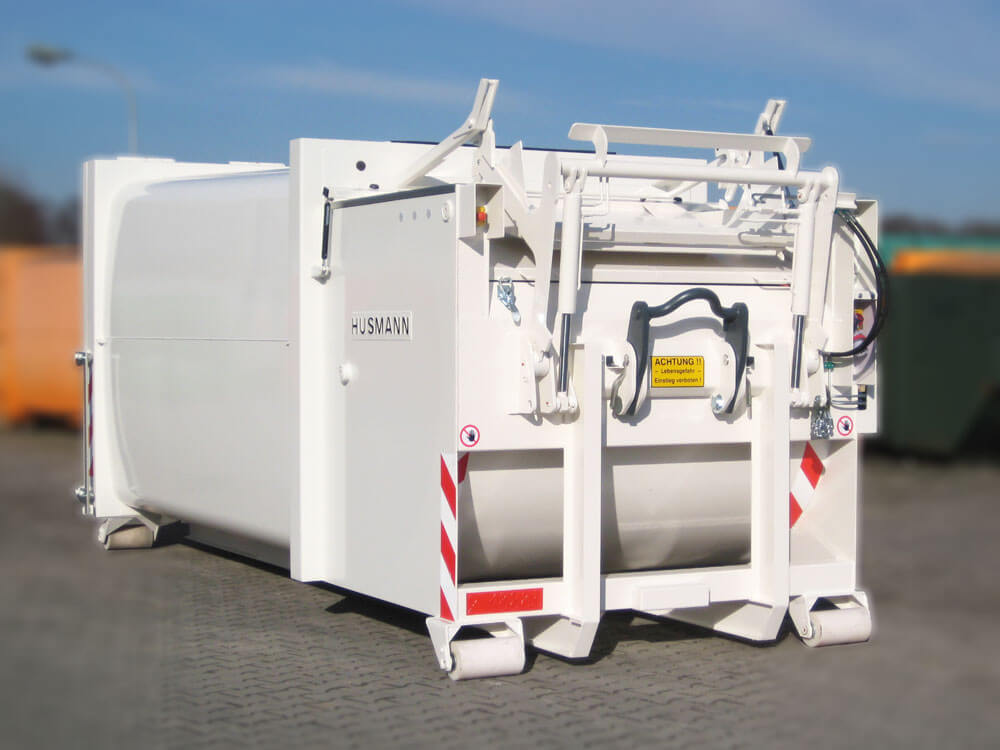

A portable hook compactor with a pendulum ram is a fully sealed, all-in-one mobile waste management system specifically engineered to process wet, organic, and moisture-laden waste. Unlike conventional horizontal compactor blades that glide along floor tracks, a pendulum ram pivots on an overhead axis in a radial, sweeping motion. The entire compactor and storage container form a single rigid body equipped with standard hook-lift points, allowing a standard commercial hook-lift truck to transport the entire sealed unit directly to a processing facility or landfill for emptying.

Standard horizontal compactors suffer when handling liquids because moisture, slurries, and organic particles seep behind the pressing plate, causing hydraulic cylinder corrosion, foul odors, and severe mechanical jamming.

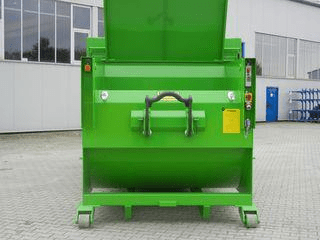

The pendulum ram operates from an overhead hinge pivot:

• Overhead Hydraulics: Drive cylinders are mounted well above the charging floor, remaining completely out of contact with corrosive organic liquids and leachate.
• Self-Cleaning Action: The curved radial sweep leaves zero clearance traps behind the blade, ensuring no food scraps or sludge accumulate in dead zones.
• Continuous Drainage Prevention: Because nothing gets dragged backward during the retraction stroke, the charging chamber stays clean and odor-free automatically.

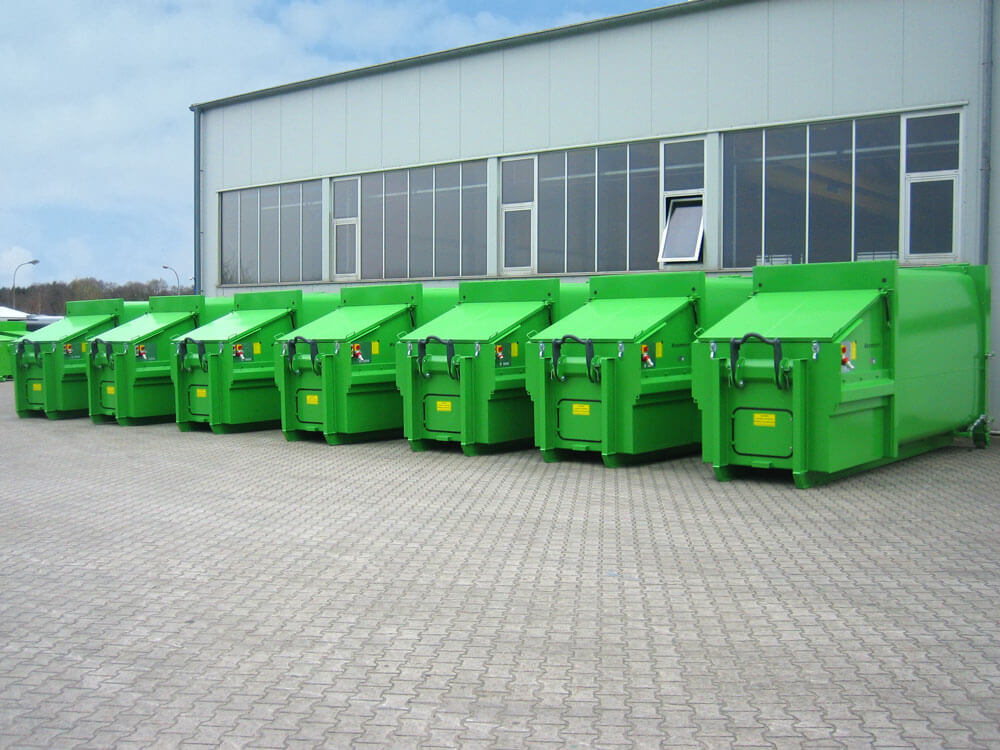

The Smart Waste SPB SW-E Pendulum Ram series is designed to handle high-volume commercial and industrial waste streams with versatile capacities:

Liquid containment is guaranteed through continuous-weld construction and specialized door engineering:

• Continuous Hermetic Sealing: The entire lower tub is welded with fully penetrating, continuous seams tested to contain water and free-flowing slurry without weeping.
• Heavy-Duty Rubber Gaskets: The rear discharge door features acid- and chemical-resistant profile rubber seals that compress tightly against machined mating surfaces.
• Adjustable Ratchet Locking: Robust multi-point mechanical ratchets clamp the rear discharge door shut under high pressure, maintaining an airtight barrier that prevents dirty runoff onto pavement and stops pest, rodent, and insect access.

Any enterprise generating high moisture content, heavy organic matter, or fermentable municipal solid waste benefits immediately, such as:

• Hospitals, Healthcare, & Aged Care: Requiring strict biosecurity, germ containment, and odor control.
• Hotels, Resorts, & Food Service: Managing food prep waste, plate scrapings, and organic buffets.
• Supermarkets & Fresh Food Markets: Handling expired produce, dairy, bakery discards, and wet packaging.
• Food Processing & Beverage Plants: Generating slurries, pomace, and production offcuts.
• Large Retail Shopping Centres: Servicing high-density food courts without contaminating loading docks.

Uncompacted wet waste is mostly air and dead space, meaning businesses pay haulers to transport empty volume. By applying 310 kN of compaction force, the pendulum ram achieves volume reduction ratios of up to 5:1 or higher (reducing 5 bins of loose waste down to 1 bin volume).

This cuts transport and haulage truck pickups by up to 70% to 80%, lowering monthly waste collection invoices, carbon emissions, and loading-dock traffic.

To comply with Australian Work Health and Safety (WHS) guidelines and eliminate manual handling risks, these compactors can be fitted with:

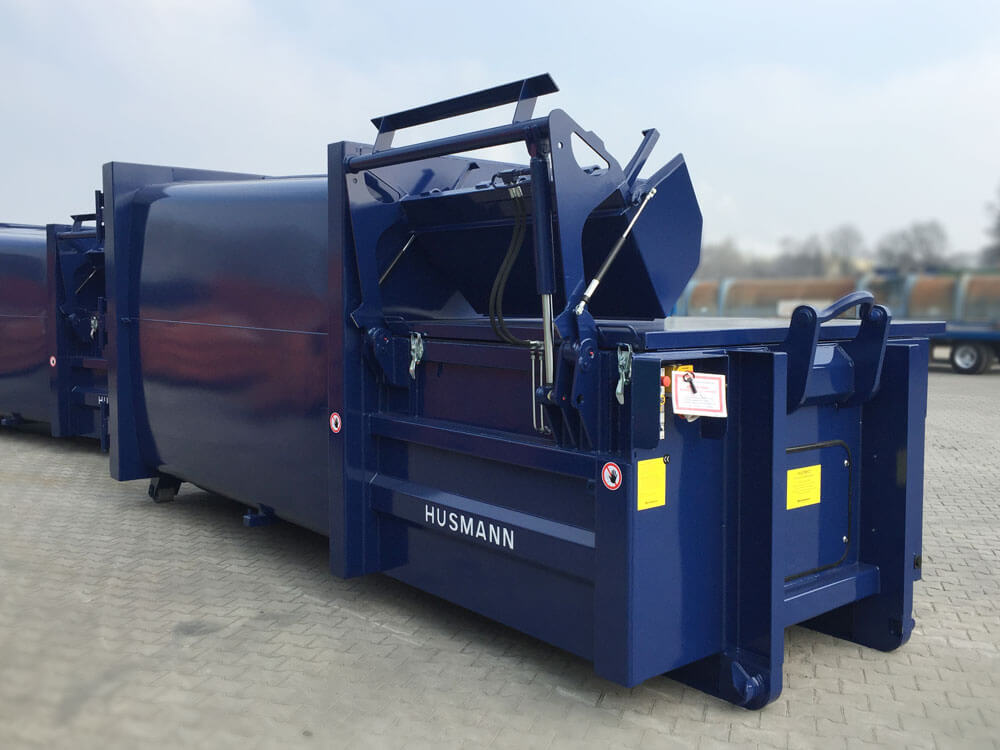

• Integrated Hydraulic Bin Lifters: Built directly onto the side or rear to lift and tip standard wheelie bins (120 L, 240 L, 660 L, and 1,100 L).
• Ground-Level Dock Loading Chutes: Tailored steel feed hoppers connected directly through a facility’s exterior wall or loading bay door.
• Enclosed Safety Cages: Interlocked safety cages with electrical cut-off switches that prevent compaction cycling when the feed hopper or safety gate is open.

Installing a portable hook compactor is straightforward because the machine arrives as a self-contained unit:

• Surface Foundation: A level, reinforced concrete pad capable of bearing the combined weight of the unit and full payload (typically 15–20 tonnes gross).
• Power Connection: A dedicated 400 V, 3-phase, 50 Hz power supply with a 16 A 5-pin CEE industrial plug socket near the unit.
• Truck Access Clearance: Unobstructed straight-line approach clearance for standard heavy hook-lift trucks to load, drop, and maneuver safely.

Routine preventative servicing keeps the equipment compliant and reliable:

• Periodic Seal Inspection: Cleaning and checking the rear door seals during empty cycles to remove abrasive grit.
• Hydraulic Fluid Monitoring: Scheduled checks of fluid levels, filter elements, and hydraulic pressure settings.
• Pivot Lubrication: Grease servicing of the overhead pendulum bearing pins to ensure friction-free radial motion. Smart Waste Australia provides routine preventative maintenance contracts and on-site emergency breakdown servicing across Australia.
