Single-Shaft Crusher HL I 1225
Recommended For businesses
Mine Sites
Logistics Companies
Warehouses
Manufacturers
Councils
Waste Transfer Stations
Councils
Waste Transfer Stations
Benefits of the HL | 1225
- The Smart Waste wood chippers are manufactured in 4 series and guarantee due to the Robust and proven construction ensures problem-free continuous use .
- The wood chippers chop up bushes and logs. The shredded material is used for composting , as grit or as wood chips to feed heating systems used.
- The logs are drawn in by the hydraulically driven rollers and the heavy Knife disc fed.
- There are different drive types available for disc shredders, which offer a wide range of possible uses.
- Whether PTO, electric, diesel or petrol drive: there is something for every application need the right solution.
- All your cardboard and plastic waste can be contained in the one area.
- Up to 9 cubic meters of cardboard, or 14 cubic meters of LDPE plastic into a single bale.
Specifications
- 1-shaft crusher with an adjustable working speed of 20 - 40 rpm.
- Hydraulic systems with a tank , Pumps and motors, Tank capacity: 280 liters , Overload protection and reversing device.
- Made of highly wear-resistant steel , Funnel dimensions : 2,200 x 5,700 mm.
- Shaft Diameter : 620mm.
- Knife Work : 16 knives, Shaft diameter: 620mm, Wavelength : 2,540 mm, Screwed, highly wear-resistant shaft scrapers and knives.
- Cutting unit : 1,200 x 2,540 mm, covered with knife shafts.
- Engine : CAT turbodiesel with an output of P = 205 kW , valid Euro emissions standard , Electric motor with a power of P = 200 kW.
- Diesel Tank : Two tanks, content: 300 liters (for diesel powered systems).
- Drive : Optionally diesel-hydraulic or electro-hydraulic, with automatic adjustable reversing device. The slow-running motor can be operated with a system pressure of 400 bar and can therefore transmit a torque of 90,000 Nm to 130,000 Nm.
- Power Control : The power-controlled hydraulic system prevents reversing too early and optimizes throughput.
- Service Monitoring : Fault messages and necessary service are displayed via indicator lights. Conveyor belt monitoring , Oil temperature , Cooling water temperature , Level indicator for cooling water circuit, oil circuit , If the error message is ignored,the machine switches off automatically, thereby preventing unnecessary damage.
- Oil Tank Heater : When temperatures are below zero, the oil tank heater can be switched on via mains power.
SIngle Shaft Shredders HL | 1225 Detail's

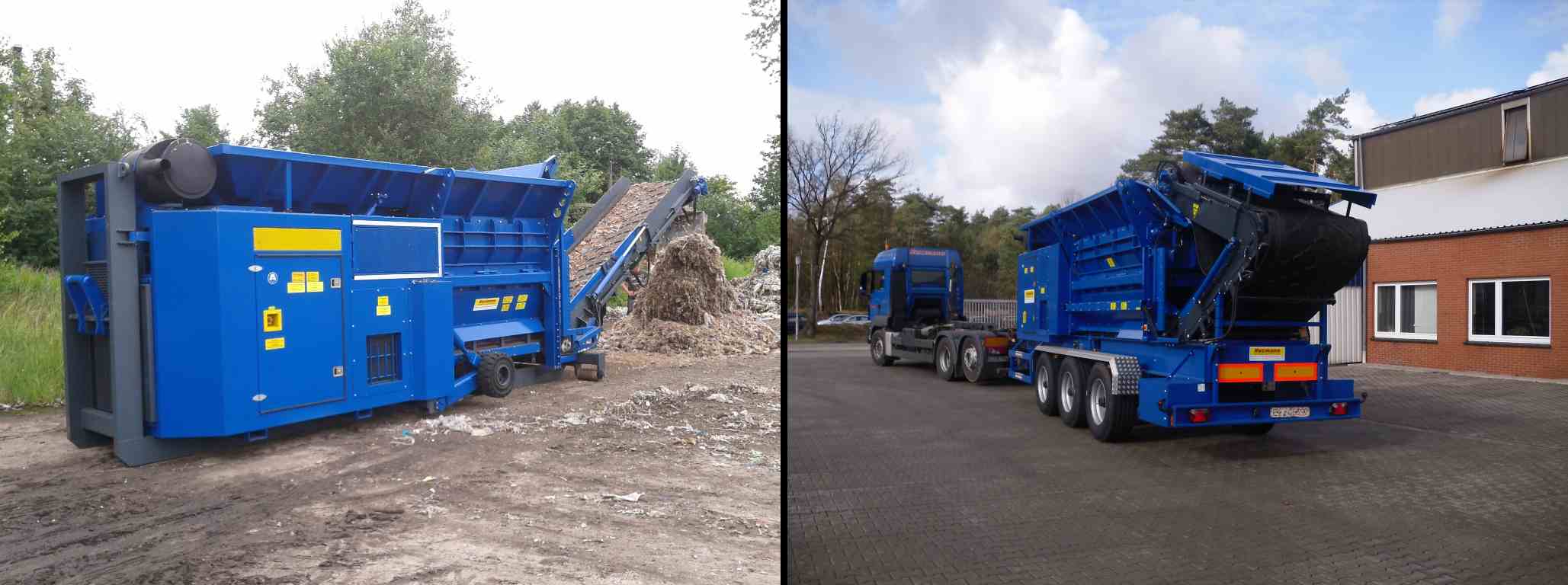

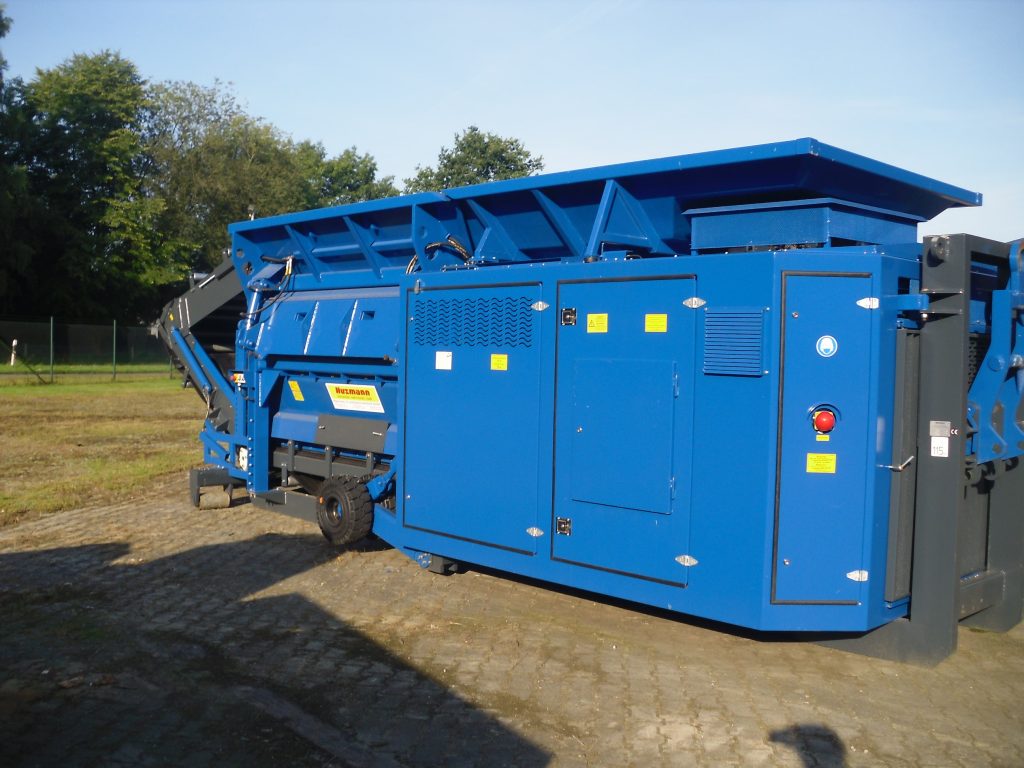

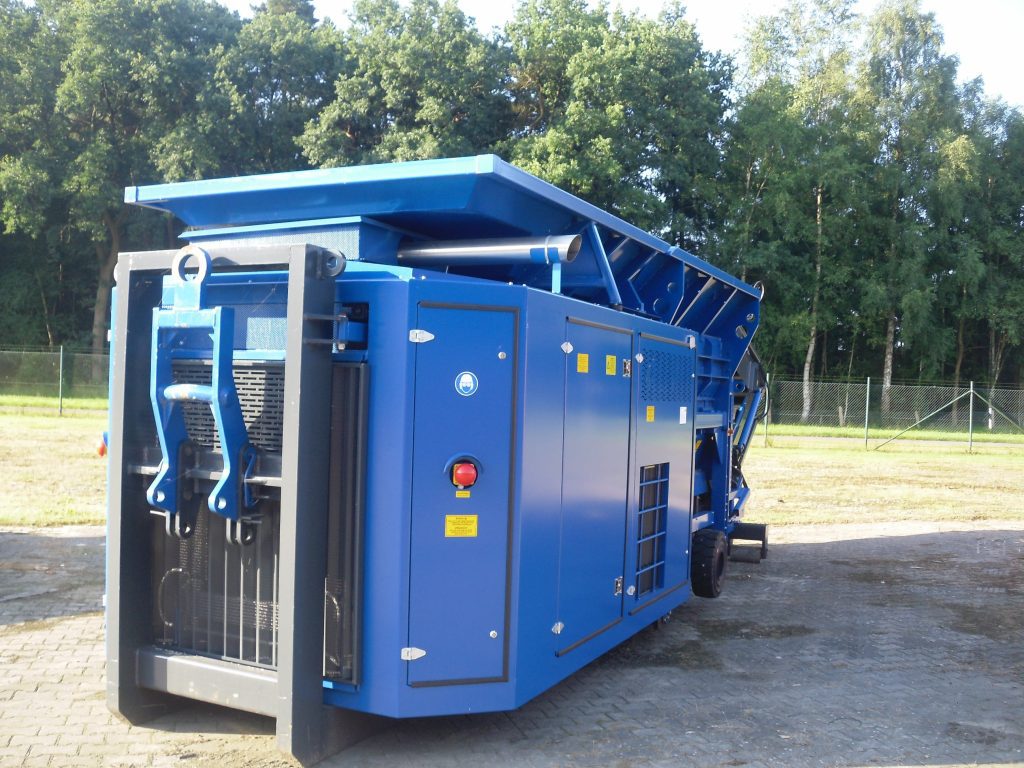

Introducing the HL I Shredding Plant Your Ultimate Solution for Efficient Waste Management! This versatile single-shaft shredder excels in processing mixed waste, bulky items, construction debris, green waste, and waste wood. Its robust design, featuring a welded steel profile construction with a hook holder, comes in various configurations including tracked, trailer-mounted , or stationary systems.
Equipped with a powerful and intelligent hydraulic system,the HL I ensures optimal shredding with automatic speed control, ranging from 20 to 35 rpm. Its durable drive unit, complete with Sauer hydraulic pumps and a slow-running motor, guarantees longevity and efficiency.
The plant’s standout features include a foldable conveyor belt for easy transport, essential monitoring devices for operational safety, and a high torque range of 90,000 ·130,000 Nm for unmatched crushing power. The innovative shredding process, operable in automatic mode, allows bidirectional shaft rotation, ensuring maximum throughput even with challenging materials.
Enhance your waste processing efficiency with the HL l’s adjustable side comb for precise fragment sizing, and enjoy quick maintenance with easily replaceable crusher blades. Make the smart choice for your business with the HL I Shredding Plant – a testament to Smart Waste years of expertise in creating top-notch crushing systems!
Need a different size? See our Larger and Smaller models
Check out our Collection Systems
Select another category
FAQ for Single Shaft Shredder HL 1225 FAQs
The HL 1225 is an extended-width industrial single shaft shredder offering an expanded 2,500 mm rotor cutting length paired with an aggressive hydraulic ram. Designed for high-throughput commercial recycling yards, RDF/SRF fuel production plants, and large timber-processing lines, the extra cutting width allows entire stacks of pallets, oversized plastic purging, and bulk packaging to be loaded directly without pre-cutting.
- Cutting Chamber Dimensions: Approx. 1,200 mm rotor diameter × 2,500 mm cutting width.
- Drive Power: 90 kW to 132 kW high-torque electric motor with heavy industrial gearbox.
- Rotor Knives: Extended knife configuration with 4-way rotatable alloy inserts (typically 40 mm × 40 mm or 60 mm × 60 mm).
- Throughput Capacity: High commercial output up to 3 to 8+ tonnes per hour (material and screen dependent).
- Hydraulic System: High-flow proportional valve hydraulic system with oil cooling for continuous multi-shift operation.
- Machine Weight: Approx. 14,000 kg to 18,000 kg.
- Wider Feed Throat: The 2,500 mm width (300 mm wider than the HL 1222) handles broad automotive components, large agricultural film bales, and wide timber sheets flat on the bed.
- Increased Rotor Knife Count: Accommodates more cutting teeth across the shaft, delivering higher cuts-per-minute for faster volumetric throughput.
- Higher Power Ratings: Supports up to 132 kW motor inputs to maintain high cutting torque across the broader cutting face.
- Post-Consumer & Post-Industrial Plastics: Large rotationally molded tanks, film rolls, automotive bumper bars, and purgings.

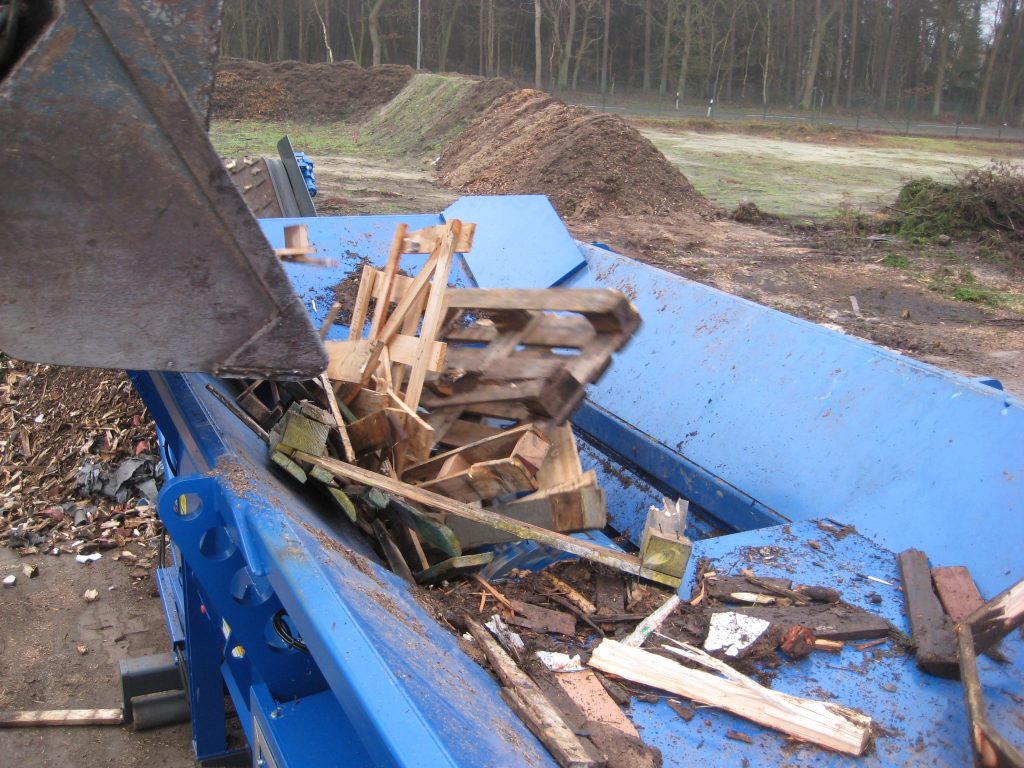

- Wood & Biomass: Oversized shipping crates, broken pallets, framing timbers, and sawmill waste.
- Refuse-Derived Fuel (RDF / SRF): Processing mixed non-hazardous commercial and industrial waste into calibrated high-calorific fuel fractions.
- Baled Materials: Compressed paper, plastic wrap, and woven Fiber bales.
- Indexable Tooling: 4-way reversible knives maximize blade lifespan by offering 4 fresh cutting edges per tooth.
- External Bearing Mounts: Heavy spherical roller bearings are mounted externally, isolated from dust, grit, and heat inside the cutting chamber.
- Wear-Resistant Hardox Liners: Replaceable Hardox liner plates in high-abrasion zones on the pusher and chamber walls minimize structural chassis wear.
