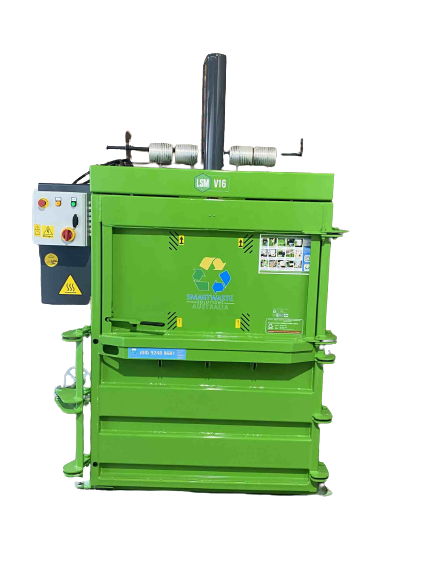

V16 Mill-sized Baler

Easy to load and operate, and able to consistently produce 250 kg bales year after year, the V16 is the ideal high-capacity baler for compacting a wide range of materials quickly and safely. With the footprint of a standard euro pallet, the V16 is suitable for baling cardboard, plastic, textile, paper, polystyrene and food waste.

Recommended for supermarkets, service stations, department stores, hotels, manufacturing plants and logistics centres.

Hydraulic Range

v16 slider
V16 slider 2nd image
v16 slider 2
v16 slider V16 slider 2nd image v16 slider 2

Recommended For

  IGA and Supa IGA Stores

  Large Supermarkets

  Manufacturers

  Large Hotelss

  Logistics Companies

  Warehouses

  Markets

  Mine Sites

Specifications

1. Bale size: 800mm H (variable) x 1100mm W x 750mm D.

2. Bale weight: 150–250 kg.

3. Cycle time: 40 seconds.

4. Compaction force: up to 16 tonnes.

5. Dimensions: 2550mm H x 1695mm W x 870mm D.

6. Fill opening: 1100mm W x 625mm H.

7. Intergrated bale out unit.

8. Machine weight: 950 kg.

9. Power: 3 Phase 380/400 volt. 3 kW motor.

10. Noise level: 74 dB.

11. E Power Standards.

12. EN 16500 Compliant.

13. IP54 Standards.

14. PLC type controller with bale full light and auto cycle.

15. Option to be Tractor Mounted
