V20X Low-liner Cross-Ram Baler
Recommended For businesses with a medium to high volume of cardboard or plastic waste.
IGA and Supa IGA Stores
Manufacturers
Large Hotels
Logistics Companies
Warehouses
Markets
Mine Sites
Large Supermarkets
Businesses with roof height issues preventing most balers
Benefits of the V20X
Specifications
- The V20 is ideal for businesses that have limited space as the unit has a similar footprint to a pallet.
- Each unit has low power consumption, safe and easy operation with low noise levels. This eliminates all fire hazards.

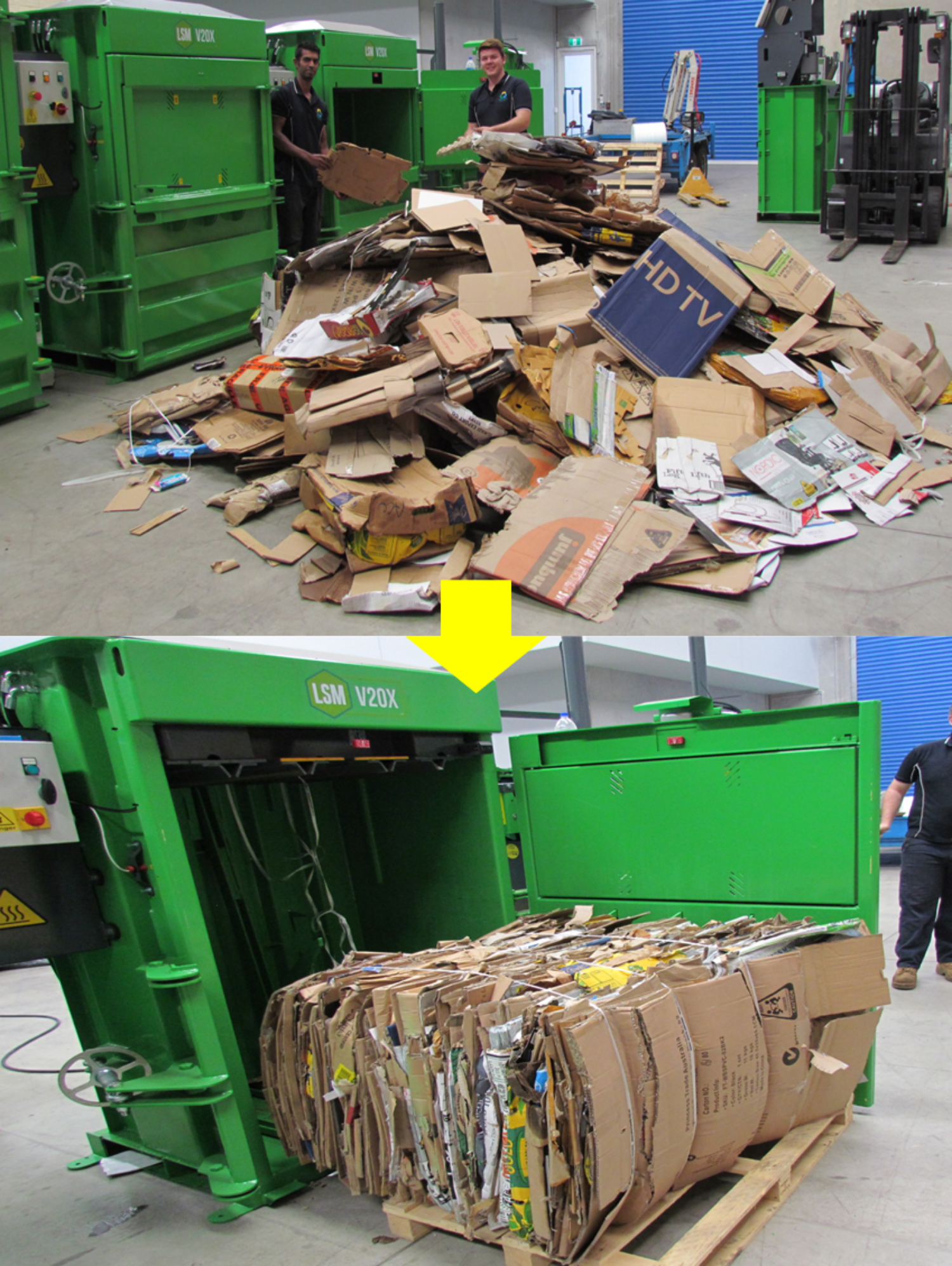

- The V20 will compact all cardboard and plastic, creating an estimated bale of 300kg.
- This unit uses a three phase 20 amp power socket
- There will no longer be a requirement to double handle cardboard boxes for disposal. This will save staff time and improve OHS.
- Extensively reduce the volume of bins needed while freeing up additional floor space.
- Create extremely compact bales for easy transport.
- All your cardboard and plastic waste can be contained in the one area.
- Bale size: 800mm H (variable) x 1100mm W x 750mm D.
- Bale weight: 200–300 kg.
- Cycle time: 35 seconds.
- Compaction force: up to 25 tonnes.
- Dimensions: 1880mm H x 1695mm W x 865mm D.
- Fill opening: 1100mm W x 625mm H.
- Intergrated bale out unit.
- Machine weight: 980 kg.
- Power: 3 Phase 380/400 volt. 3 kW motor.
- Noise level: 74 db.
- E Power Standards.
- EN 16,500 Compliant.
- IP54 Standards.
- PLC type controller with bale full light and auto cycle.
Specifications
- Bale size: 800mm H (variable) x 1100mm W x 750mm D.
- Bale weight: 250–350 kg.
- Cycle time: 35 seconds.
- Compaction force: up to 25 tonnes.
- Dimensions: 1880mm H x 1695mm W x 865mm D.
- Fill opening: 1100mm W x 625mm H.
- Intergrated bale out unit.
- Machine weight: 980 kg.
- Power: 3 Phase 380/400 volt. 3 kW motor.
- Noise level: 74 dB.
- E Power Standards.
- EN 16,500 Compliant.
- IP54 Standards.
- PLC type controller with bale full light and auto cycle.

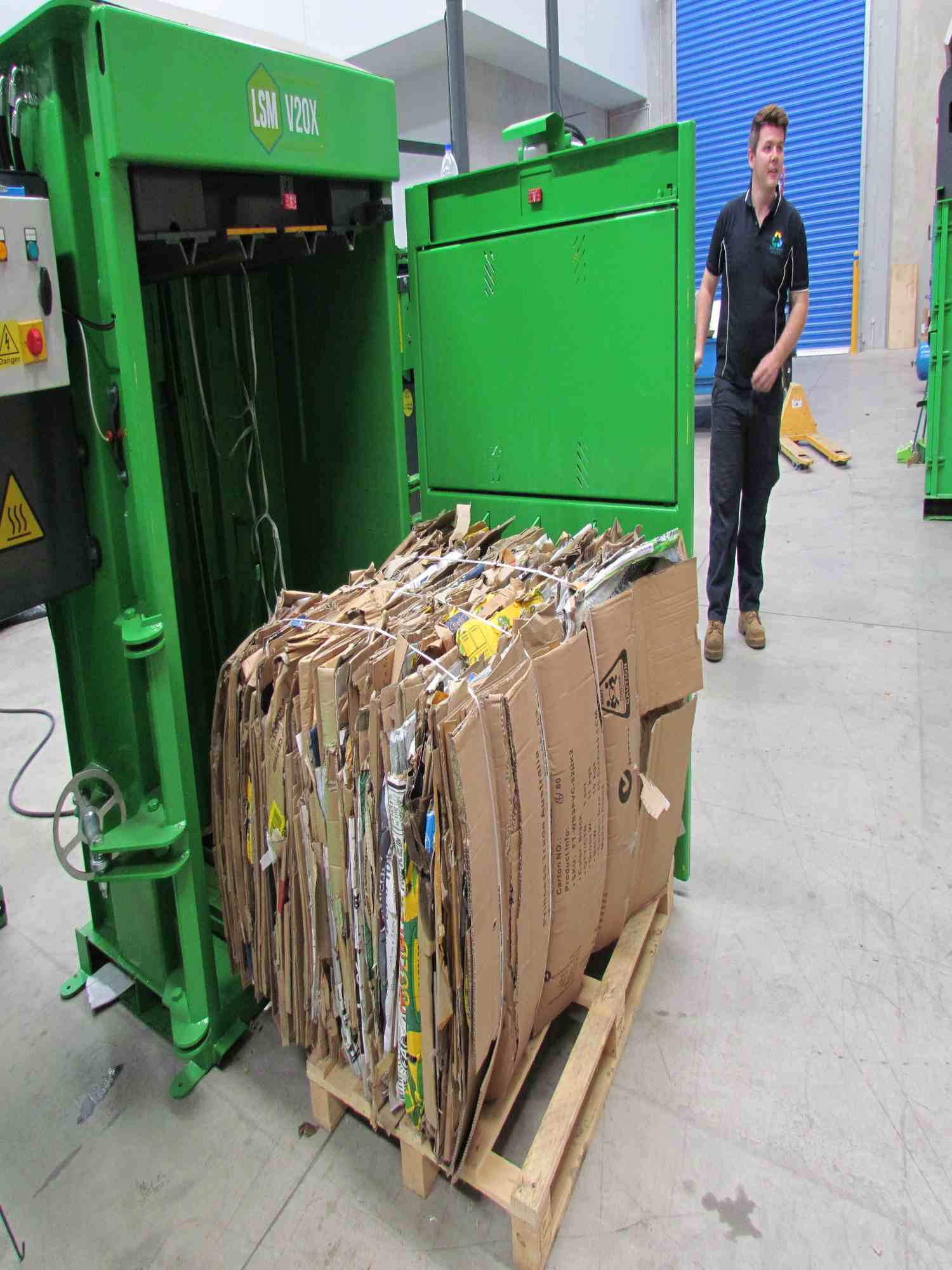

V20x Low-liner Cross-Ram Baler Details
Need a different baler size? See our Larger and Smaller models
Check out our Collection Systems
Select another category
FAQs for V20X Large Cardboard & Plastic Baler
The V20X Large Cardboard & Plastic Baler is part of Smart Waste’s Hydraulic Range of Vertical Balers, designed to compact large volumes of cardboard and plastic into dense, manageable bales. It helps businesses improve recycling efficiency while reducing waste storage requirements.
The V20X Large Cardboard & Plastic Baler is designed to process cardboard, plastic, and suitable recyclable materials, helping businesses simplify waste collection and support more efficient recycling operations.
The V20X is suitable for businesses that generate higher volumes of cardboard and plastic waste and require a larger hydraulic baler to support their waste management and recycling operations.
The V20X helps reduce recyclable waste volume, improve workplace organisation, maximise storage space, simplify waste collection, and produce compact bales that are easier to handle and transport.
If your business regularly generates significant volumes of cardboard and plastic waste, the V20X may be an appropriate solution. Smart Waste can assess your waste management requirements and recommend the most suitable baler for your operation.
Before selecting a large cardboard and plastic baler, consider your daily waste volumes, recyclable materials, available installation space, and long-term waste management goals. Smart Waste can help identify the right equipment for your business.
By compressing recyclable materials into compact bales, the V20X improves waste handling, reduces storage requirements, supports organised recycling areas, and makes waste collection more efficient.
Yes. Smart Waste provides professional installation and commissioning services to ensure the V20X Large Cardboard & Plastic Baler is installed correctly and operates safely and efficiently.
Yes. Smart Waste offers preventative maintenance, equipment servicing, repairs, spare parts, and technical support to help maintain the performance and reliability of the V20X throughout its operational life.
Yes. Smart Waste offers both purchase and rental options for its waste management equipment, allowing businesses to choose the solution that best suits their operational and budget requirements.
Smart Waste provides site assessments and expert advice to help businesses compare hydraulic balers and select the most suitable solution based on recyclable materials, waste volumes, available space, and operational requirements.
Smart Waste provides a complete waste management solution, including equipment supply, installation, preventative maintenance, servicing, repairs, spare parts, technical support, and ongoing customer support to help businesses maximise the performance and value of their investment.
