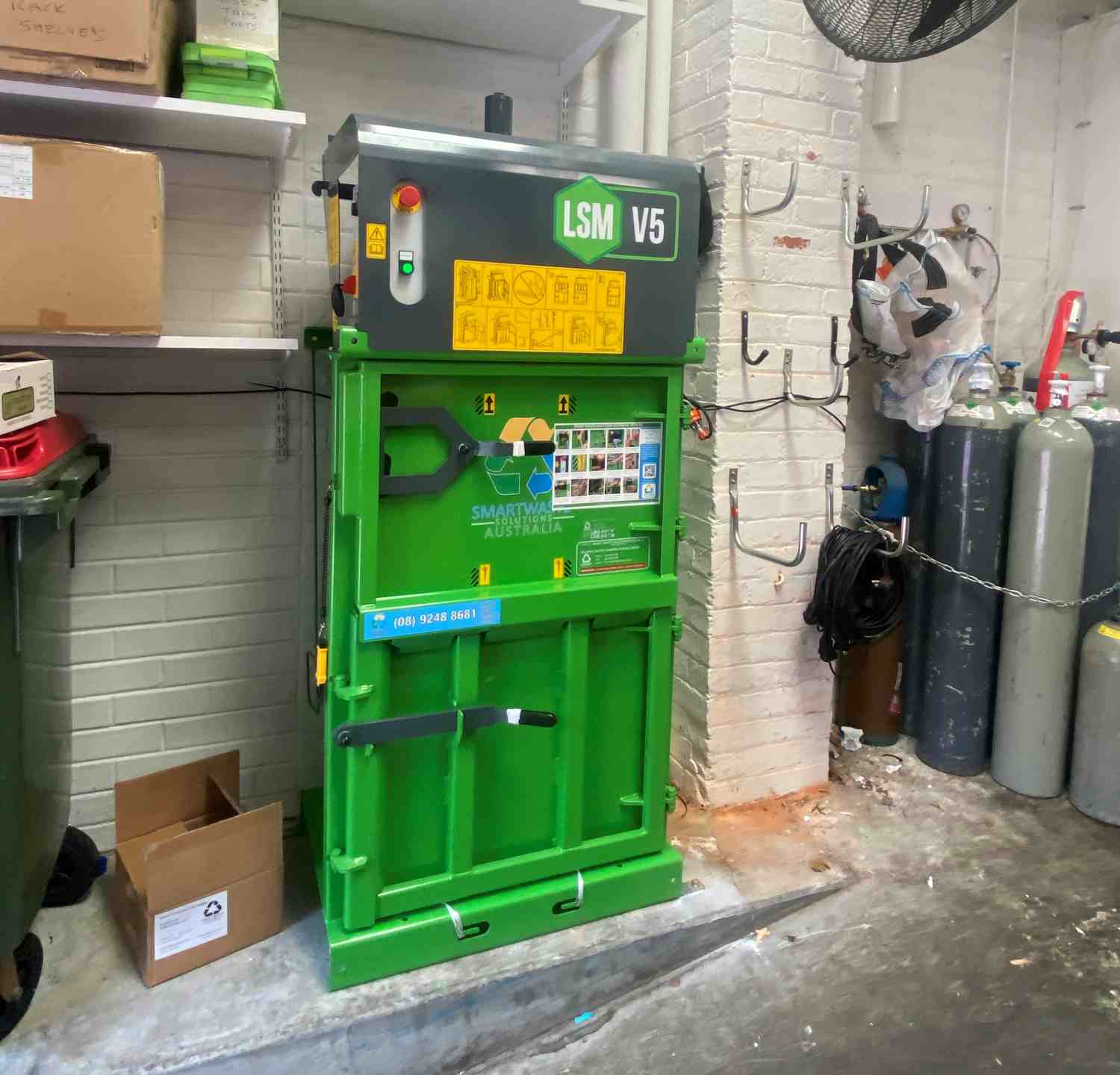

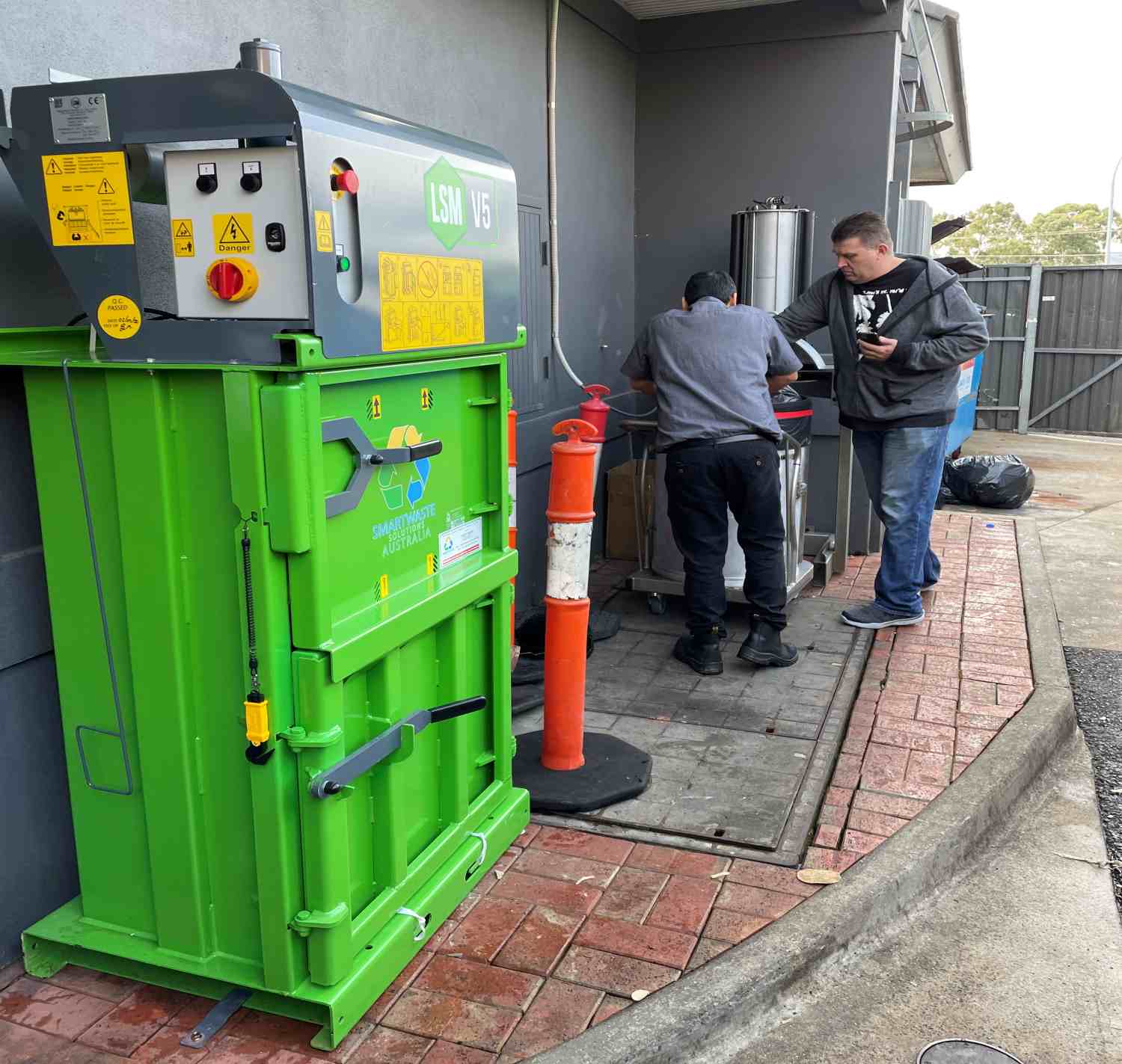

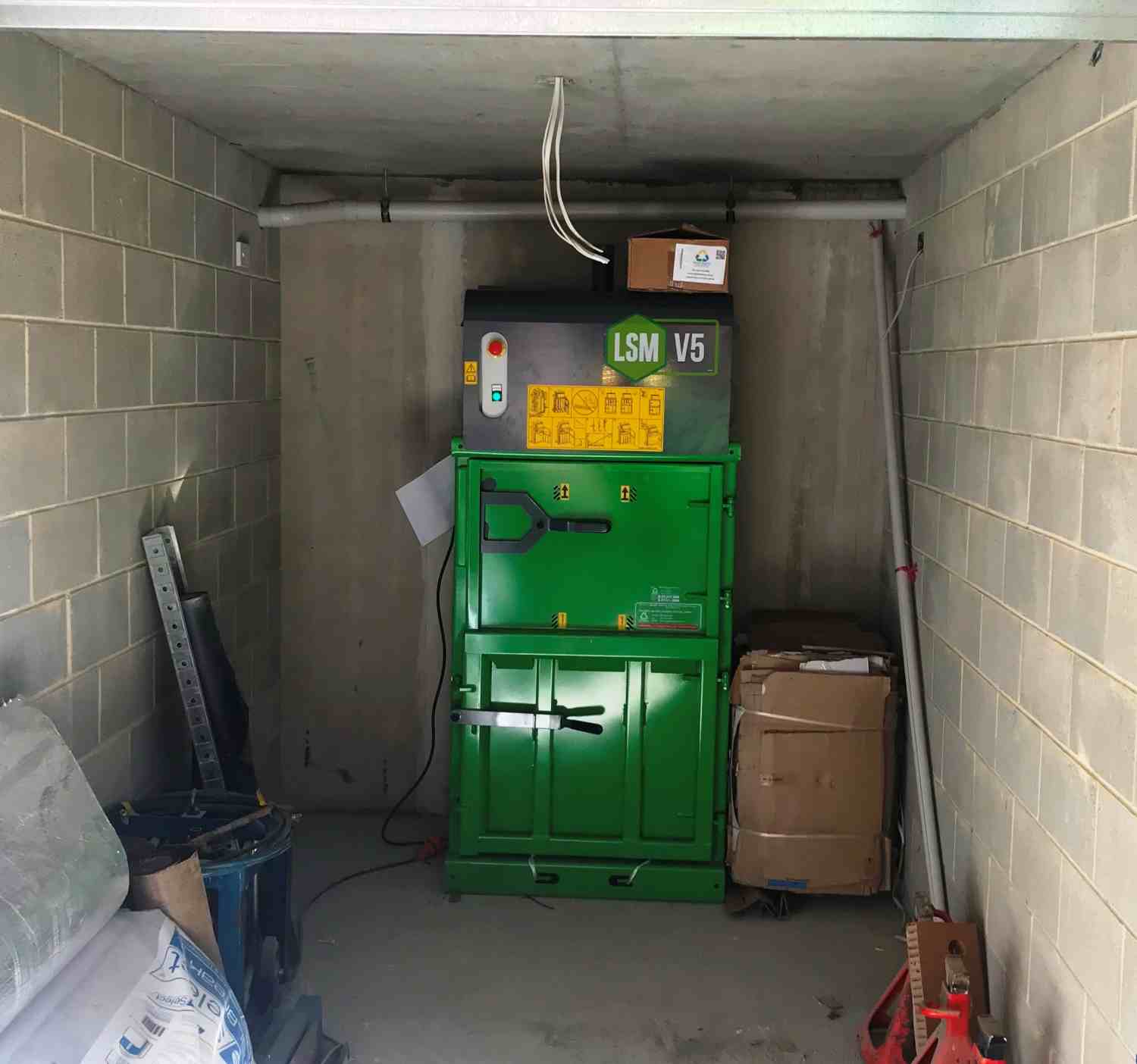

V5 Small Baler

Versatile, efficient, and easy to use, the V5 small plastic and cardboard compactor offers an economic waste baling solution for small and medium-sized businesses with consistent waste types and amounts. With automatic and manual bale cycles and LSM&rsquo’s easy-tie system, the V5 makes quick work of cardboard, plastic, textile, paper, polystyrene, and food waste.
It is recommended for convenience stores, petrol stations, hotels, guest houses, restaurants, retail, and small manufacturing companies.

Cardboard Compactor

Hydraulic Range

Image 42

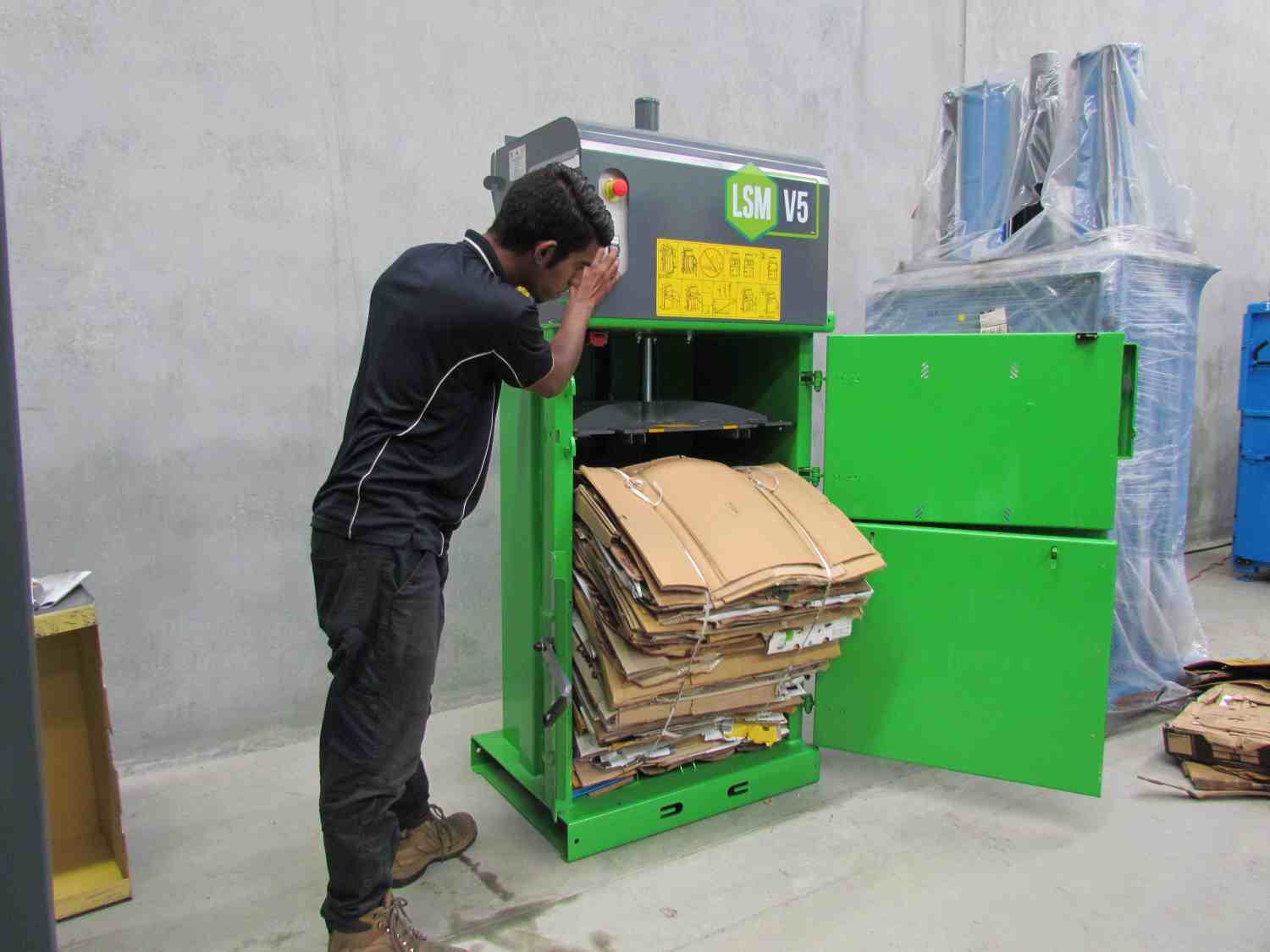

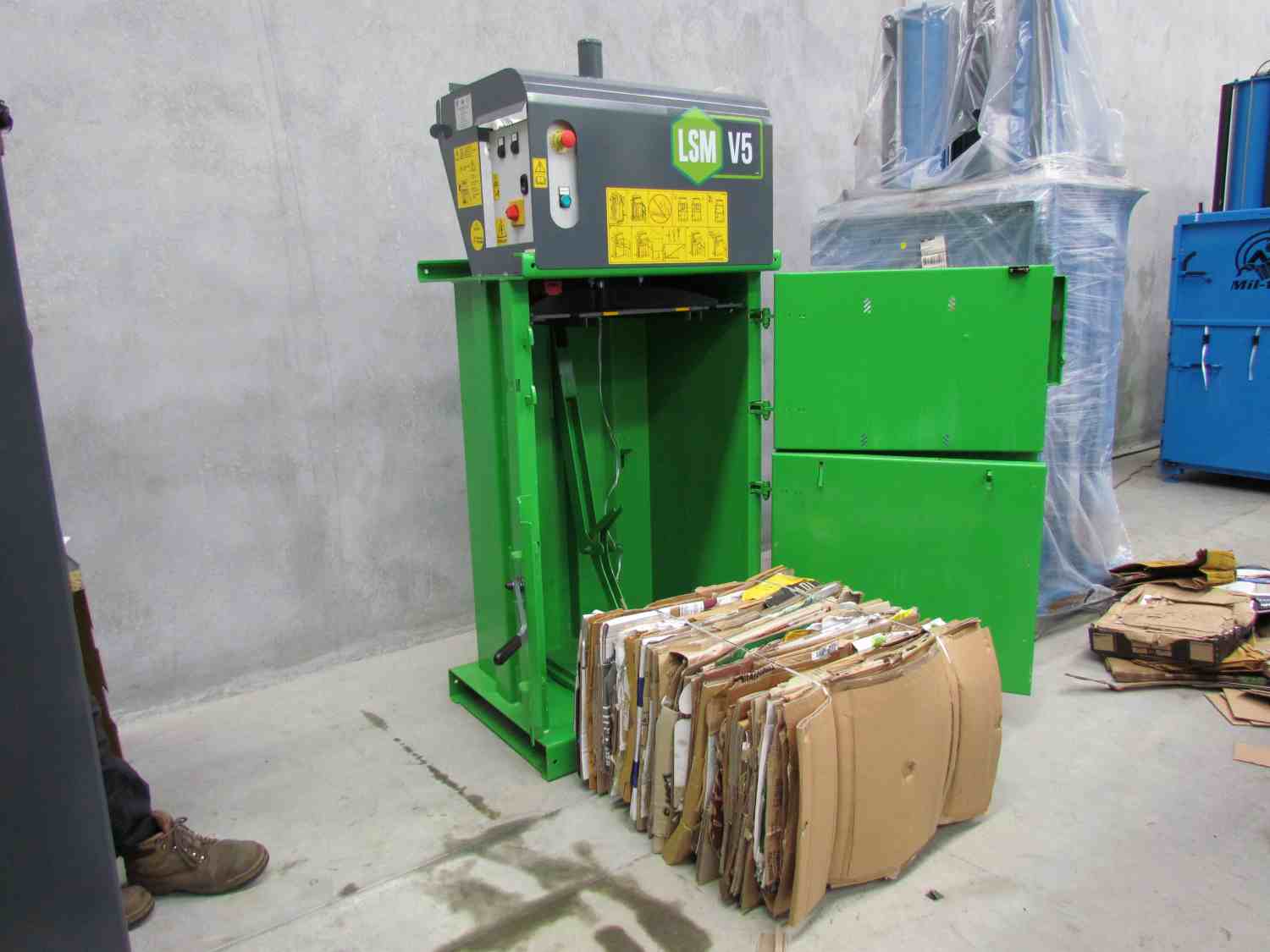

Cardboard compactor
Image 43

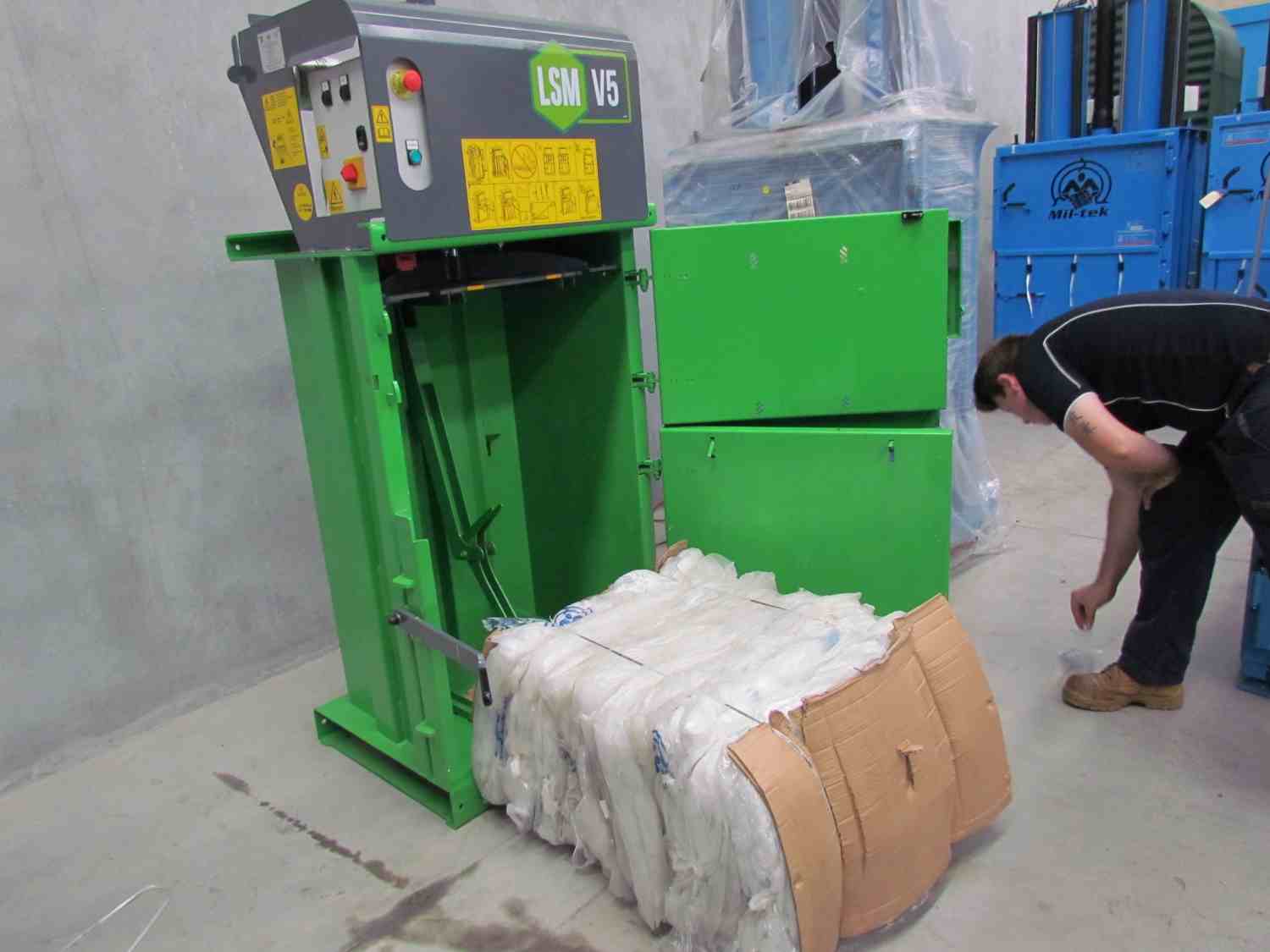

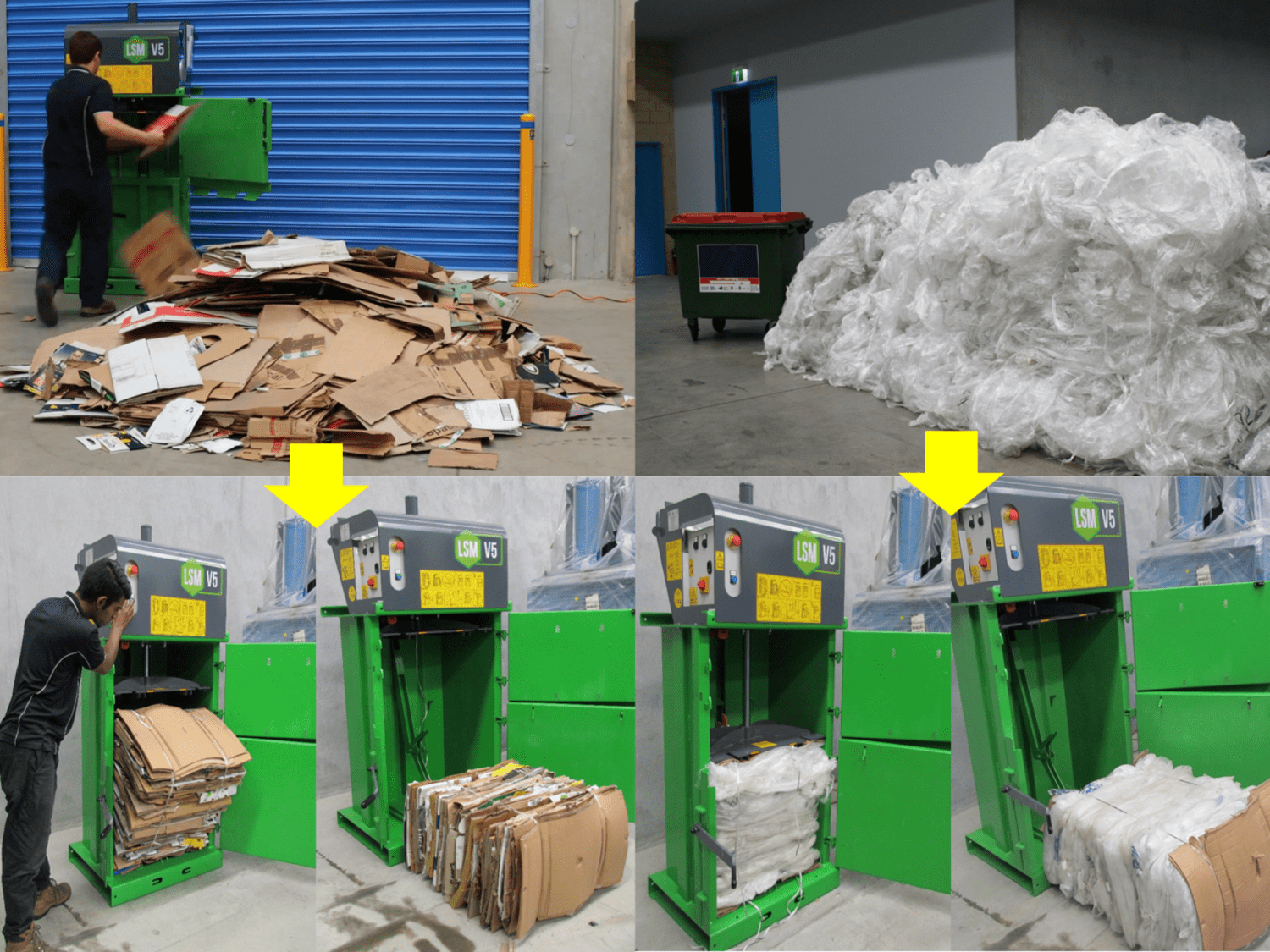

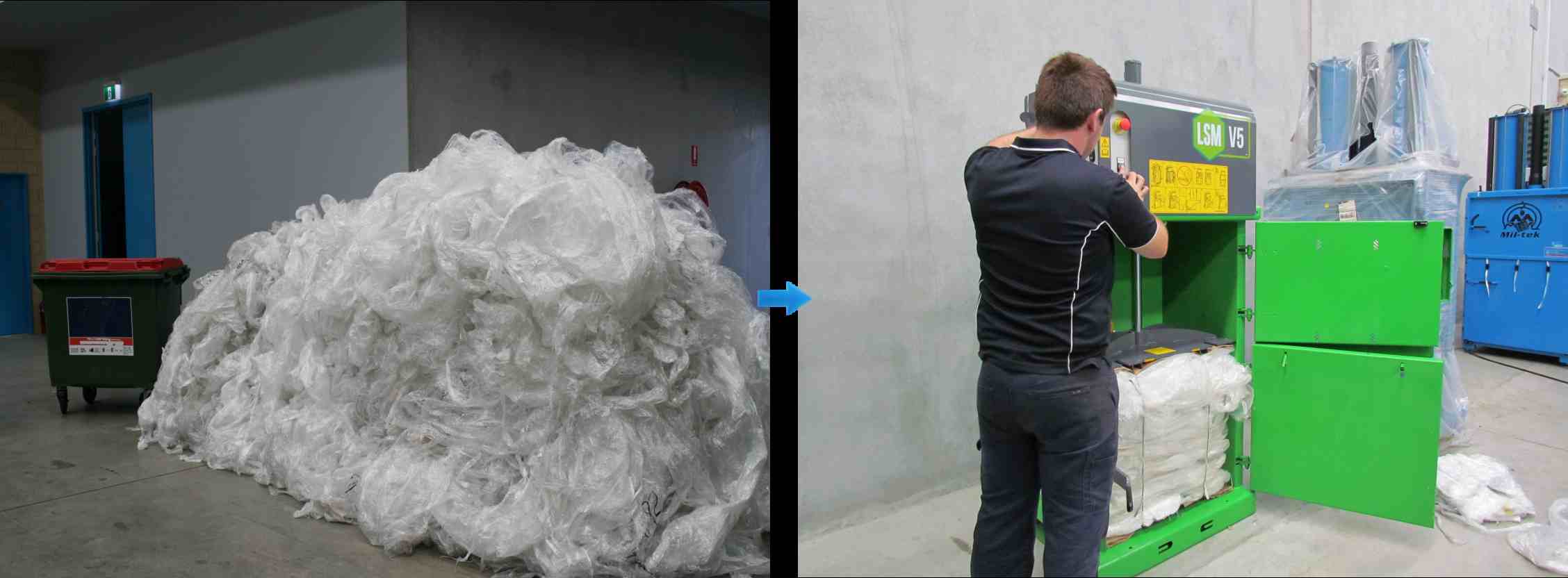

V5 Plastic Baleout
Image 42 Cardboard compactor Image 43 V5 Plastic Baleout

Recommended For

  IGA and SUPA IGA Stores

  Manufacturers

  Hotels

  Restaurants

  Retail

  Food and Beverage Wholesales

  Warehouses

  Mine Sites

Specifications

1. Bale size: 700mm H (variable) x 750mm W x 500mm D.ycle time: 35 seconds

2. Bale weight: 50–100 kg.

3. Cycle time: 28 seconds .

4. Compaction force: up to 5 tonnes.

5. Dimensions: 2015mm H x 870mm W x 655mm D.

6. Fill opening: 750mm W x 385mm H.

7. Intergrated bale out unit.

8. Machine weight: 340 kg.

9. Power: single phase 220V 50 Hz 1.5 kW motor.

10. Noise level: 70 dB.

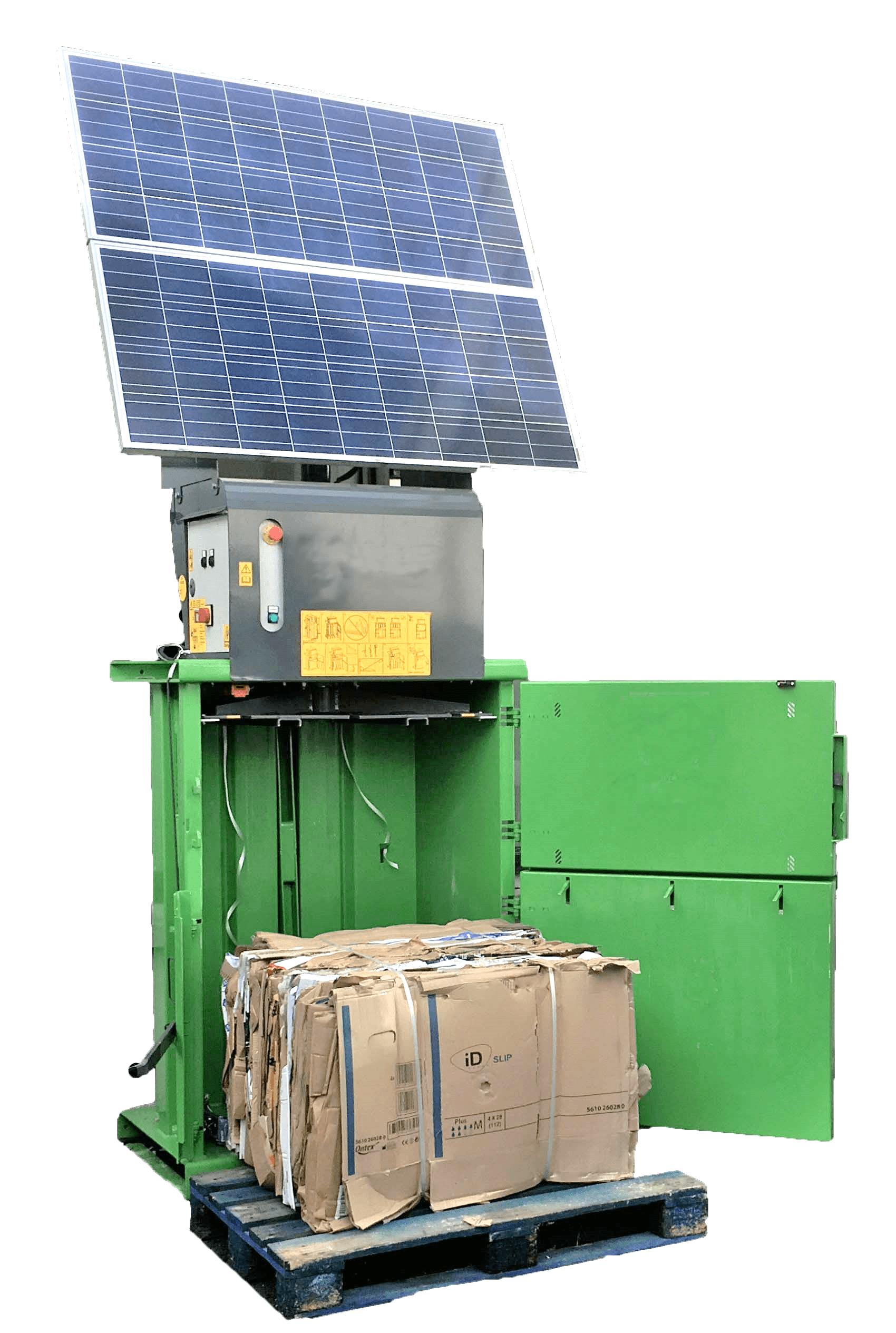

11. e-Power.

12. EN 16,500 Compliant.

13. IP54 Standards.

14. PLC controller with automatic cycle.
