H 10 Wood Chippers

The Wood Chipper H-10 is an industrial-capacity, heavy-duty commercial wood chipper engineered to process whole tree trunks, massive hardwood limbs, dense logging slash, and bulky vegetation up to 10 inches (250 mm to 255 mm) in continuous diameter.

As the flagship, high-throughput model in the range, the H-10 is built specifically for large-scale forestry clearing, commercial arboriculture contractors, municipal utility corridor line clearance, and civil land-development projects that require maximum continuous output and minimal manual chainsaw trimming.

• Maximum In-Feed Capacity: 10 inches (~250 mm to 255 mm) continuous timber diameter.
• Cutting Mechanism: High-mass, extra-heavy solid steel cutting rotor/drum assembly fitted with multiple double-sided, reversible hardened tool steel knives.
• Engine Power Output: 75 HP to 100+ HP heavy-duty industrial turbo-diesel engine delivering sustained peak torque under maximum wood resistance.
• Hydraulic In-Feed System: Twin oversized, high-torque hydraulic feed rollers with down-pressure assistance, hydraulic lift cylinder, variable speed feed, and electronic auto-reverse.
• Discharge Chute: 360-degree rotating discharge chute with tool-free multi-position deflector cap, designed to blow chips into high-sided bulk transport trucks.
• Chassis & Running Gear: Heavy-duty tandem-axle highway trailer with ADR-approved braking systems, or an optional heavy-duty steel/rubber all-terrain crawler track carrier.

• Timber & Throat Capacity: The H-10 handles full 10-inch (250 mm) timber, whereas the H-8 tops out at 8 inches (200 mm), the H-7 at 7 inches (175 mm), and the H-5 at 5 inches (125 mm).
• Industrial Engine Displacement: Powered by 75–100+ HP turbo-diesel units, providing the massive rotational kinetic energy required to slice through continuous, whole-log Australian hardwoods without bogging down.

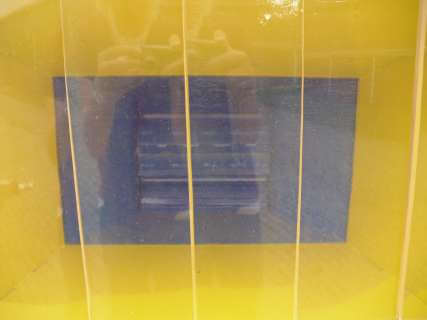

• Crushing Force & Feed Geometry: Features extra-wide feed rollers with twin heavy-duty hydraulic motors and down-pressure assist, flattening thick limb crotches and bushy side branches directly in the tray.
• Heavy-Duty Chassis Construction: Built with structural box-section steel and replaceable Hardox wear liners inside the cutting throat to withstand continuous commercial multi-shift operation.

The H-10 is built to process heavy forestry and commercial waste streams:

• Whole Hardwood & Softwood Trunks: Complete logs, heavy eucalyptus trunks, pine stems, and large tree boles up to 10 inches thick.
• Wide Canopy & Crown Branches: Spreading branches, bushy green waste, and dense storm-damaged trees without manual pre-trimming.
• Stringy & High-Moisture Fibrous Timber: Difficult species such as palm trunks, bamboo, willow, and stringybark that cause blockages in smaller machines.
• Commercial & Sawmill Offcuts: Hardwood timbers, structural construction offcuts, wooden crating, and whole pine shipping pallets.

The H-10 features an industrial-grade microprocessor No-Stress auto-feed monitoring system:

• Electronic sensors measure flywheel and engine shaft RPM continuously in milliseconds.
• When feeding large 10-inch logs, any drop below the engine’s peak torque curve instantly causes the feed rollers to pause or execute a micro-reverse stroke.
• Once the massive flywheel regains rated cutting speed, the rollers re-engage automatically to feed the timber forward.
• This eliminates engine stalls, prevents drive clutch glazing, protects hydraulic circuit valves from overheating, and avoids costly blade-jam blockages.

Loose woody brush, whole tree crowns, and logging waste consist largely of void air pockets:

• Volume Reduction Ratio: Achieves volume reduction ratios between 8:1 and 12:1, condensing up to 12 truckloads of bulky tree limbs into a single dense load of uniform wood chips.
• Tipping & Labor Savings: Significantly reduces road transport movements, driver hours, and tip fees by maximizing container weight and payload density.
• High-Value Mulch Output: Produces consistent, dimensional wood chips ideal for commercial parkland mulch, compost bulking, boiler biofuel, and soil stabilization.

The machine complies with Australian workplace safety guidelines (AS/NZS 4024 Machine Safety Standards):

• Four-Sided Emergency Stop & Reverse Bar: A high-visibility, full-perimeter mechanical bump bar surrounds the hopper mouth, allowing an operator to stop or reverse feed rollers instantly from any position.
• Deep Safety Intake Hopper: An extended in-feed hopper tray ensures an operator cannot physically reach the feed rollers or cutting blades with their arms extended.
• Dual-Channel Emergency Stops: Prominently positioned mushroom E-stop buttons located at the top of the in-feed table and the central engine control cabinet.
• Positive Rotor Lock Pin: A heavy steel locking pin physically prevents rotor movement during knife changes and routine chamber maintenance.

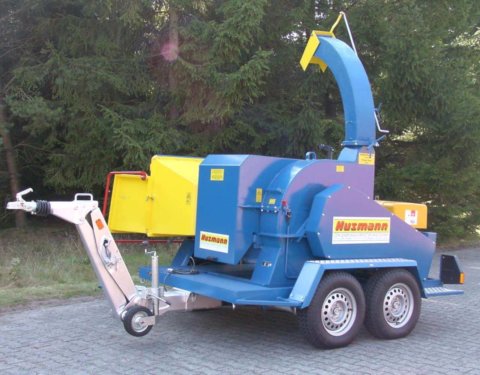

• Road-Towable Highway Trailer: Tandem-axle configuration equipped with ADR-compliant electric or air-assisted brakes, heavy-duty running gear, LED highway lighting, and heavy-duty pintle tow hitches.
• All-Terrain Tracked Carrier: Self-propelled rubber or steel crawler tracks featuring proportional hydraulic controls, zero-turn capabilities, and high gradeability for steep embankments, rail corridors, and soft forestry terrain.

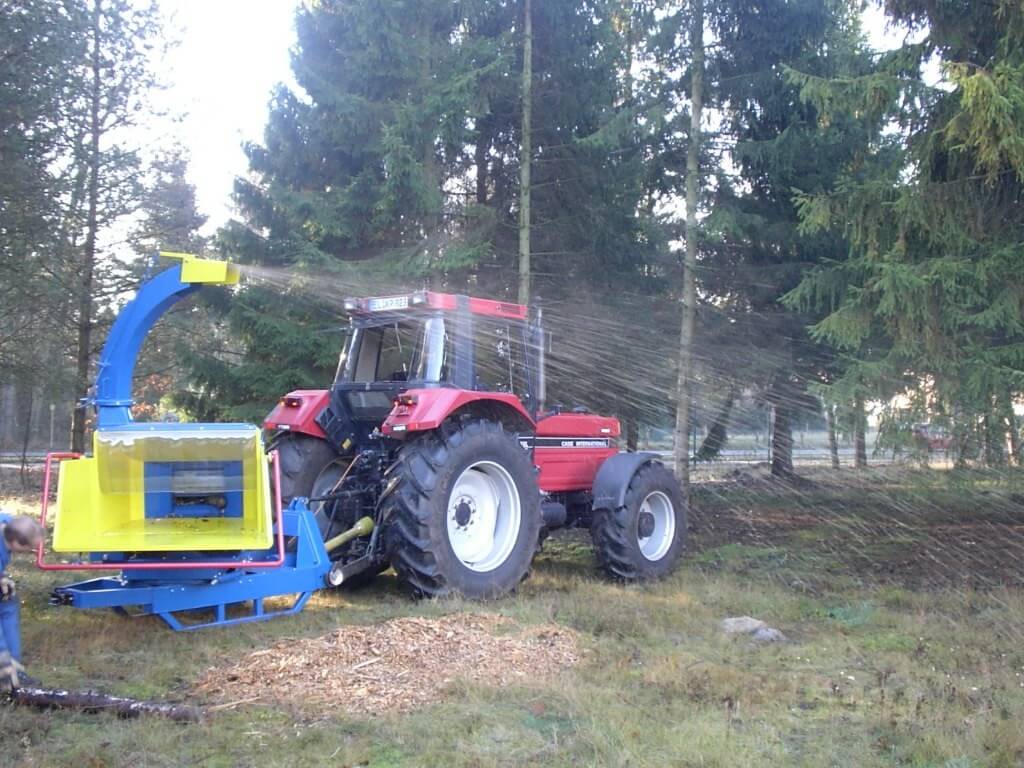

• Heavy-Duty Tractor PTO Linkage: 3-point linkage configuration driven directly by high-horsepower agricultural or municipal tractors (80–120+ HP PTO output).

• Blade Care & Clearance: The H-10 utilizes double-sided, heat-treated alloy tool steel knives. Inspect, reverse, or sharpen blades every 30 to 50 operating hours, maintaining the bed knife anvil gap strictly at 1.0 mm to 1.5 mm.
• Hydraulic System Checks: Regularly inspect hydraulic oil cleanliness, change return line filters, and inspect feed roller high-pressure hoses for abrasion or heat wear.
• Drive Belt Tension: Periodically check and tension the heavy-duty banded drive belts to ensure complete power transfer without slip under heavy log resistance.

• Bearing Lubrication: Apply high-temperature, extreme-pressure grease to the main rotor shaft pillow block bearings and in-feed roller pivot pins on a daily or weekly schedule. Smart Waste Australia provides nationwide scheduled servicing, genuine replacement knives, and mobile breakdown repairs.
