CP205 – Drum Crusher
Speciality Range

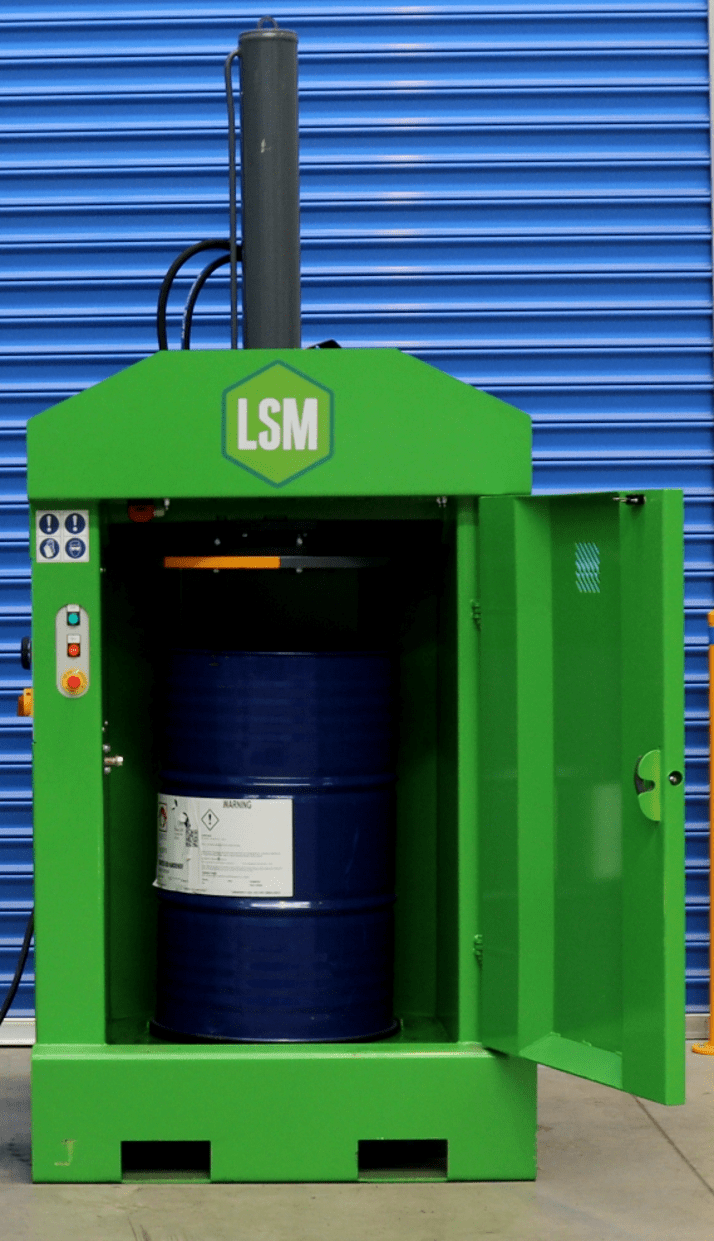

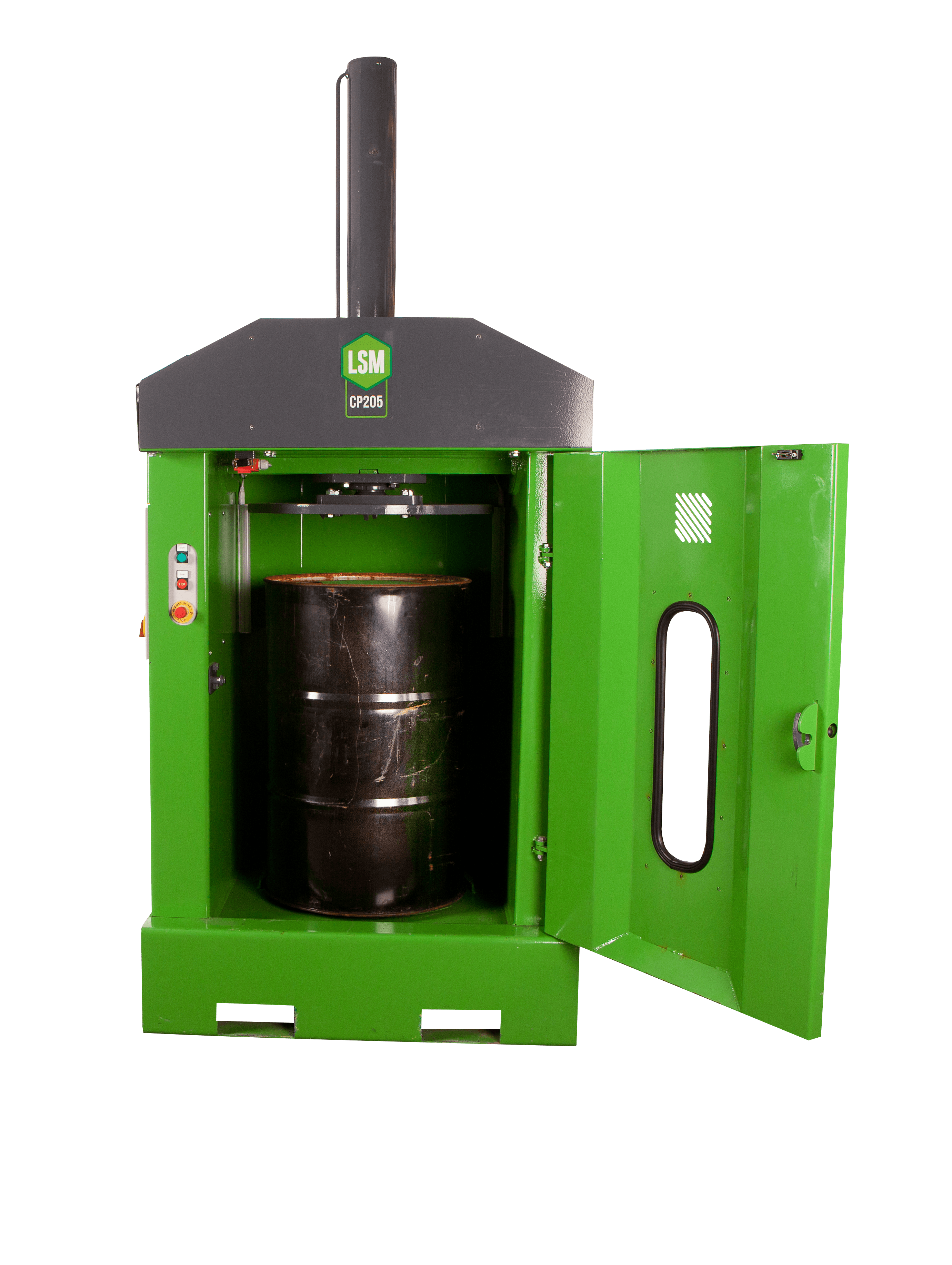

CP205 Drum Crusher
Advanced engineering and an impressive 30-tonne pressing force help the CP205 crush 205-litre drums to a fraction of their original size.
Recommended For ➤
Manufacturing Industries
Pharmaceuticals Industries
Features ⇩
Automatic up and down cycle.
IP54 control panel for easy operation.
40-liter liquid retention tank with outlet tap.
Safety door interlocks for added safety.
Integrated drum piercing.

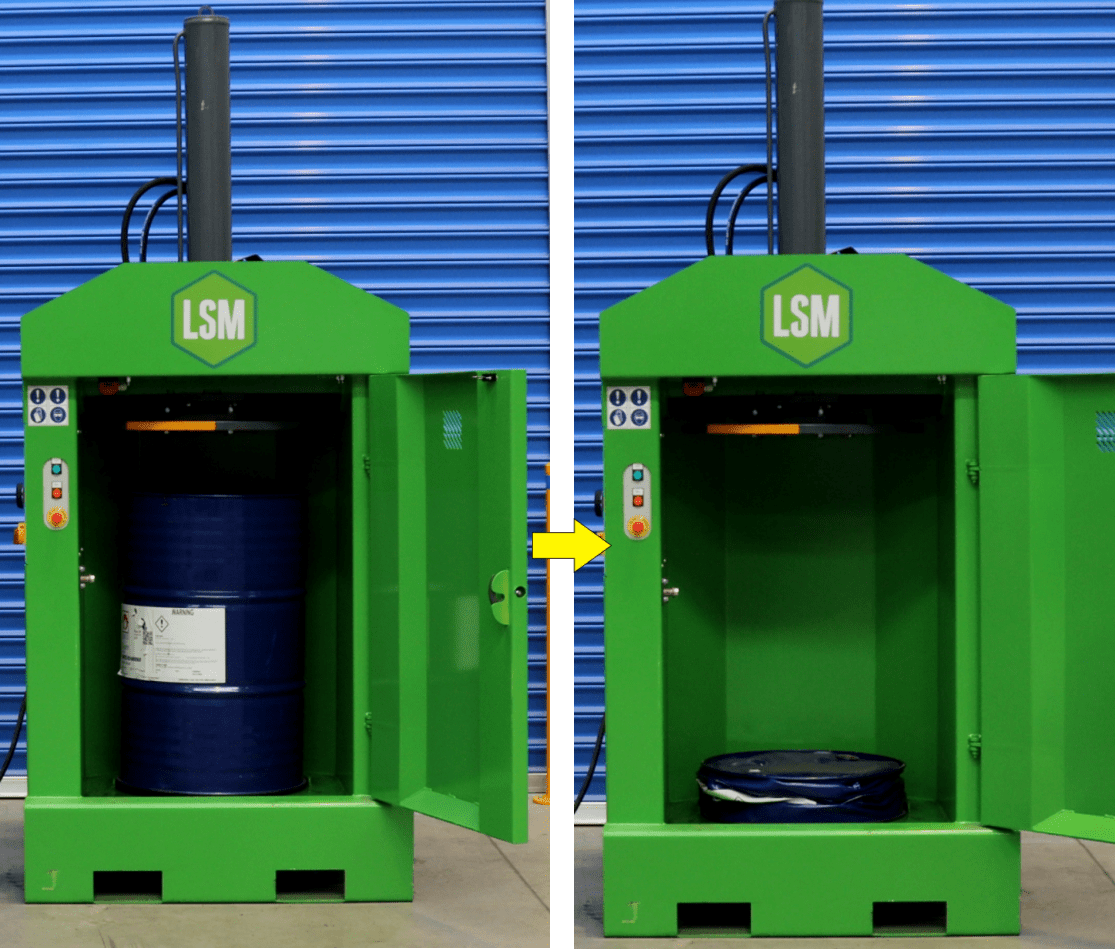

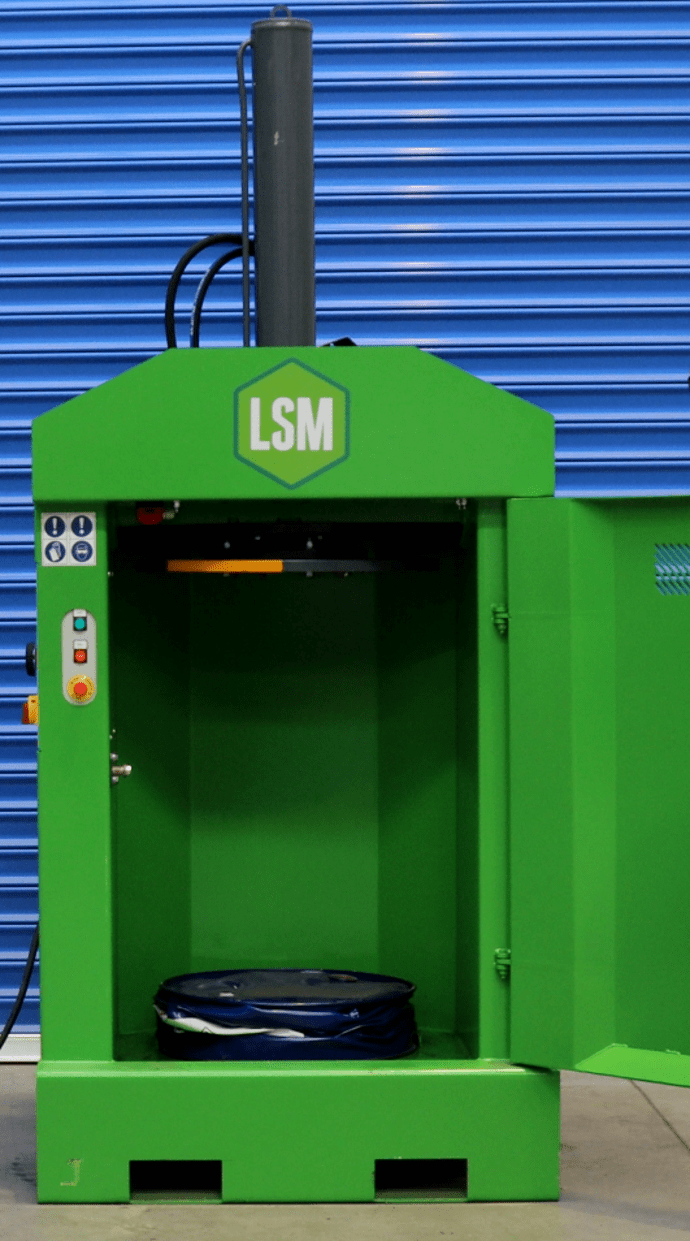

Crush drums to a fraction of their size.
Specifications ⇩
1. Reduction: 8:1.
2. Cycle time: 45 seconds.
3. Compaction force: up to 30 tonnes.
4. Dimensions: 2560mm H x 1130mm W x 860mm D.
5. Power: 380-420V 3 Phase 7.5 kW motor
6. Integrated drum piercer
7. Very Large Air filters
8. Machine weight: 815 kg.
9. Noise level: 76 dB.
10. EN 16,500 Compliant.
11. IP54 Standards.
12. PLC controller with automatic cycle.
13. Commercial Transport Businesess
14. Approx 12.5% of original size
Options ⇩
Marine Specification
Galvanized
Drum Discharge
